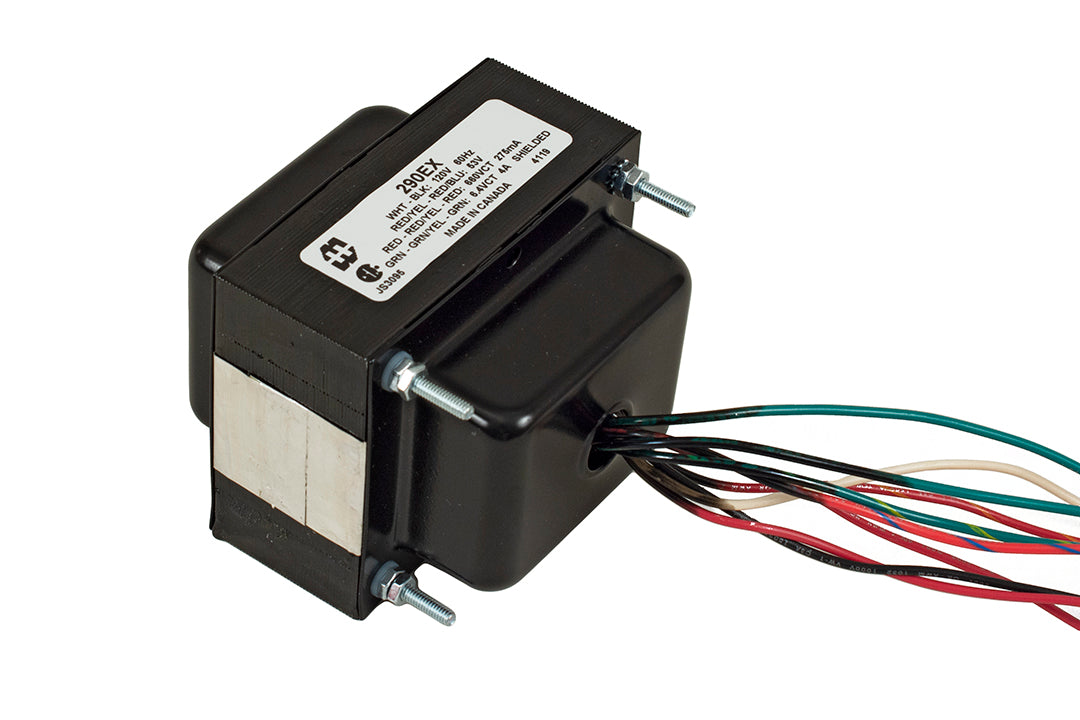

290EX Hammond Power Transformer
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 290EX is listed by Hammond as power transformer, replacement for Fender guitar amp, 290 series, from the Tube Guitar Amplifier, Power Transformers (290 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
290EX specifications
| Catalog number | 290EX |
| Manufacturer | Hammond Manufacturing |
| Series | Tube Guitar Amplifier, Power Transformers (290 Series) |
| Hammond description | Power transformer, replacement for Fender guitar amp, 290 series |
| Hammond short description | 330-0-330, [email protected] |
| Shipping weight | 7.65 lb (3.47 kg) |
| Primary Volts | 120V |
| Secondary 1 | 660Vct @ 275 mA |
| Secondary 2 | 53V Bias |
| Secondary 3 | 6.3Vct @ 4A |
| Amp Mfr | Fender |
| Amp Model (Ref. Only) | BANDMASTER* |
| Similar Amp P/N's (Ref. Only) | 67233, 125P7D, 125P7DX, 022814 |
| Chassis No. (Ref. Only) | Blond, 6G7-A, Blackface, AA763, AB763, Silverface, AC568, AD1269 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 290EX. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 290EX · Hammond 290 series specification sheet (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
