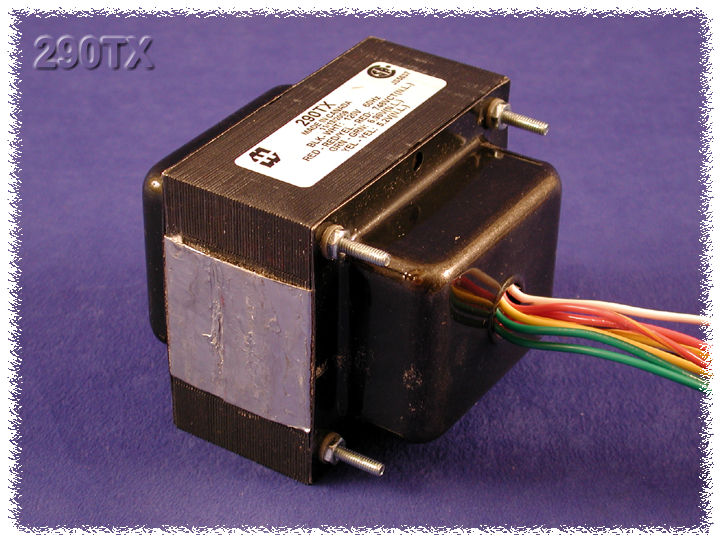

290TX Hammond Power Transformer
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 290TX is listed by Hammond as power transformer, replacement for Fender guitar amp, 290 series, from the Tube Guitar Amplifier, Power Transformers (290 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
290TX specifications
| Catalog number | 290TX |
| Manufacturer | Hammond Manufacturing |
| Series | Tube Guitar Amplifier, Power Transformers (290 Series) |
| Hammond description | Power transformer, replacement for Fender guitar amp, 290 series |
| Hammond short description | 748VCT AC/55V/6.3VAC/5VAC |
| Shipping weight | 8.25 lb (3.74 kg) |
| Primary Volts | 120V @ 60 Hz |
| Secondary 1 | 696Vct @ 500 nA |
| Secondary 2 | 52V Bias |
| Secondary 3 | 6.5V @ 2A |
| Secondary 4 | 5V @ 2A |
| Amp Mfr | Fender |
| Amp Model (Ref. Only) | BASSMAN 59* (REISSUE) |
| Similar Amp P/N's (Ref. Only) | 36483 |
| Chassis No. (Ref. Only) | 217-1000-010 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 290TX. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 290TX · Hammond 290 series specification sheet (PDF).
