2STFS747512SS Hammond Type 4X Sloped Top Stainless Steel Freestanding
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

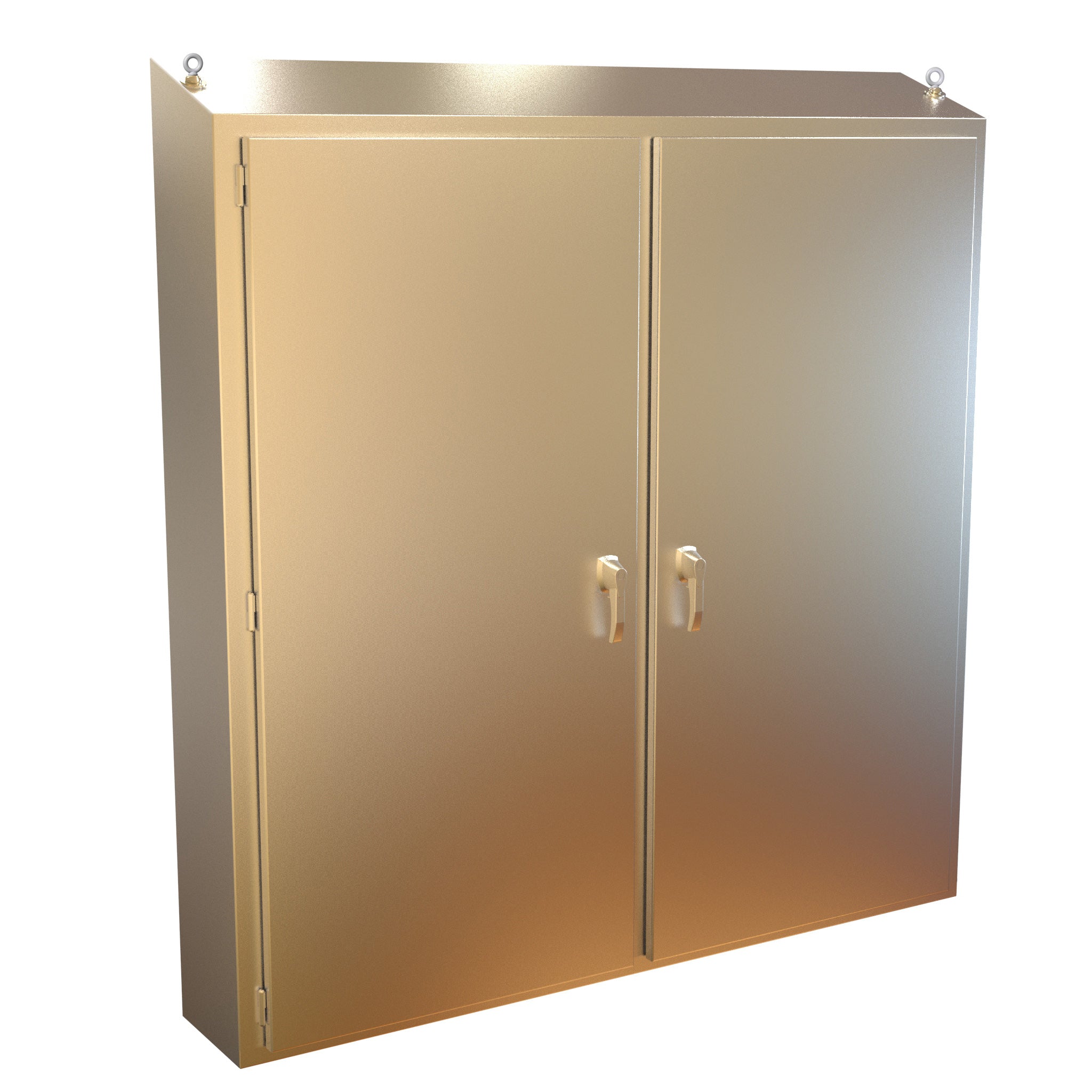

The Hammond Manufacturing 2STFS747512SS is listed by Hammond as N4X Slope Top 2 Door Freestanding Encl w/panel, 74 x 75 x 12, 304SS, from the Type 4X Sloped Top Stainless Steel Freestanding (2STFS Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
2STFS747512SS specifications
| Catalog number | 2STFS747512SS |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4X Sloped Top Stainless Steel Freestanding (2STFS Series) |
| Hammond description | N4X Slope Top 2 Door Freestanding Encl w/panel, 74 x 75 x 12, 304SS |
| Hammond short description | SLOPE TOP 2DR FREEST 304SS |
| Size H x W x D | 74.13 in x 75.13 in x 12.13 in (1,883 mm x 1,908 mm x 308 mm) |
| Shipping weight | 1227 lb (556.56 kg) |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 2STFS747512SS. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 2STFS747512SS · Hammond 2STFS series specification sheet (PDF) · BUL10020, MISC, ENCLOSURE DETAILS (PDF) · BUL10267, TORQUE RATINGS (EDF0054) (PDF).
