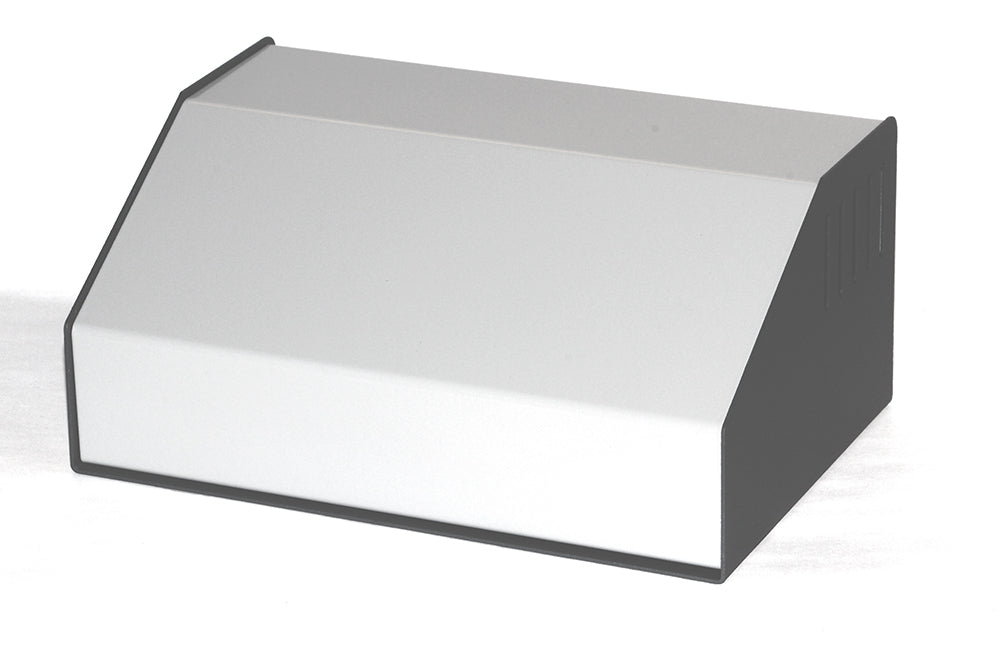

519-0910 Hammond Sloped Aluminum & Steel Console, 8.5 x 5.7 x 3.78 in, IP30, Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 519-0910 is listed by Hammond as enclosure, aluminum, from the Sloped Aluminum & Steel Consoles (500-515-519 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
519-0910 specifications
| Catalog number | 519-0910 |
| Manufacturer | Hammond Manufacturing |
| Series | Sloped Aluminum & Steel Consoles (500-515-519 Series) |
| Hammond description | enclosure, aluminum |
| Hammond short description | PANEL/CASE |
| Size L x W x H | 8.5 x 5.7 x 3.78 in (216 x 145 x 96 mm) |
| Shipping weight | 1.94 lb (0.88 kg) |
| Material | Steel |
| Color | Gray |
| IP Rating | IP30 |
| Product Category | Enclosures |
| Type | Sloped Console |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 519-0910. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 519-0910 · Hammond 500-515-519 series specification sheet (PDF).
