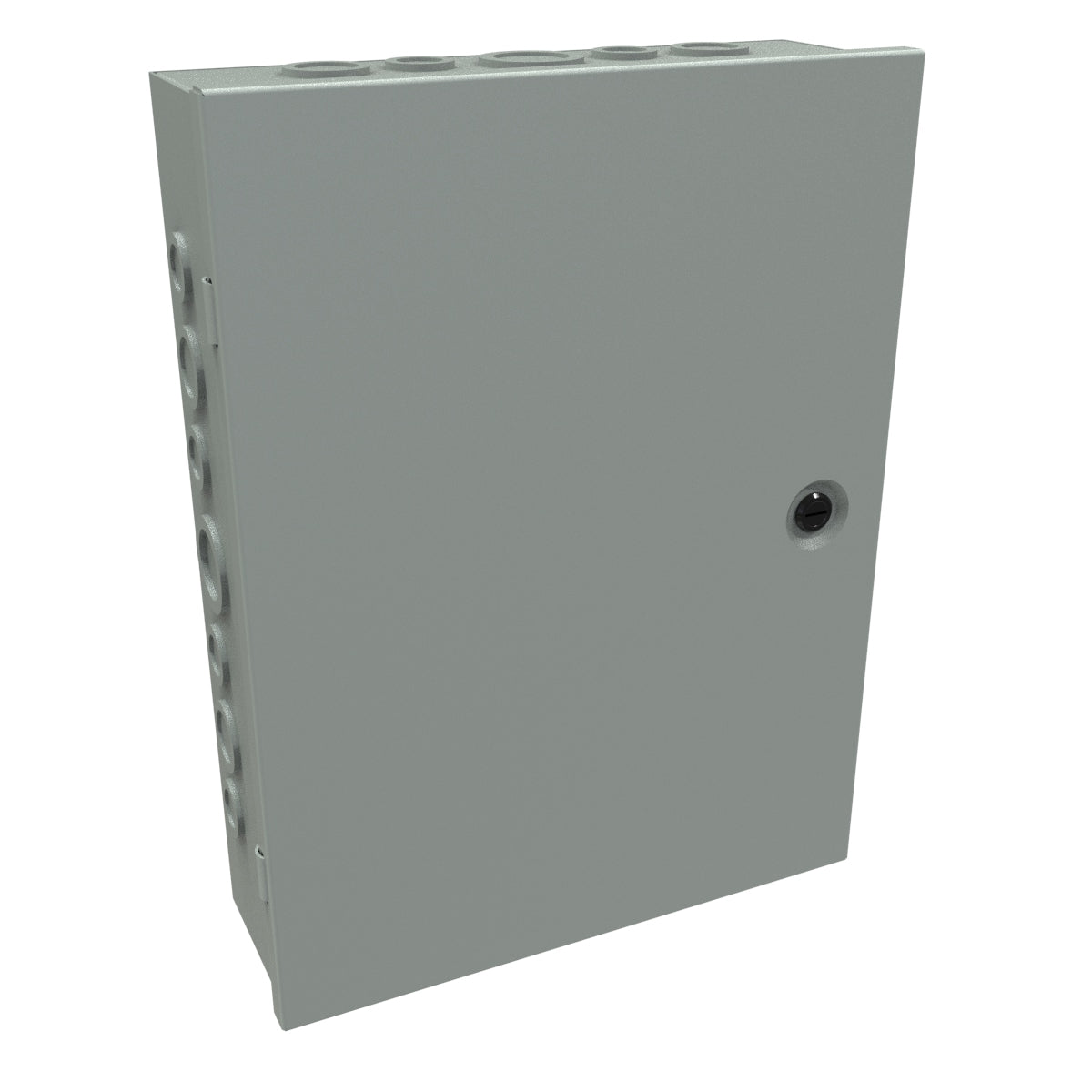

CHKO16124 Hammond Type 1 Mild Steel Junction Box, 16 x 12 x 4 in
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing CHKO16124 is listed by Hammond as N1 Hinge Cover w/KO's, 16 x 12 x 4, Steel/Gray, from the Type 1 Mild Steel Junction Box (CHKO Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
CHKO16124 specifications
| Catalog number | CHKO16124 |
| Manufacturer | Hammond Manufacturing |
| Series | Type 1 Mild Steel Junction Box (CHKO Series) |
| Hammond description | N1 Hinge Cover w/KO's, 16 x 12 x 4, Steel/Gray |
| Hammond short description | HINGE COVER W/KO'S 16X12X4 |
| Size H x W x D | 16 x 12 x 4 in (406 x 305 x 102 mm) |
| Shipping weight | 12 lb (5.44 kg) |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for CHKO16124. Confirm against the current Hammond drawing before you design it in.
Hammond product page for CHKO16124 · Hammond CHKO series specification sheet (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
