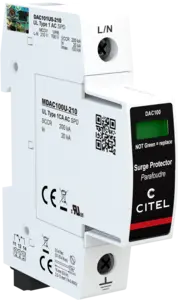

DAC101US-210 Citel Type 1 Surge Protector, 210 V 1PH, 100 kA DIN Rail
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Citel DAC101US-210 is a Type 1 surge protective device for 210 V 1PH circuits, DIN rail mounting, with Imax 100 kA and In 20 kA. It is UL listed (File Number E326289). Applied Control is the Citel representative for Michigan and Indiana. Send the part number, or the one-line and the circuit it protects, and the quote comes back the same business day.
Surge protection device for single-phase AC power with visual fault indicator, remote contacts, and pluggable/replaceable modules.
Request a QuoteBook 15 Minutes
DAC101US-210 specifications
| Model | DAC101US-210 |
| Citel item number | 55110079 |
| Series | DAC100US |
| SPD type | UL1449 5th Edition TYPE 1 |
| Listing | UL Listed (File Number E326289) |
| Nominal voltage | 210V |
| Configuration | Single phase, 1 wire + ground (L-N mode) |
| Modes of protection | L-N |
| MCOV | 210V |
| VPR | 700V |
| In, nominal discharge current | 20 kA |
| Imax | 100 kA |
| SCCR | 200 kA |
| Mounting | DIN Rail |
| Enclosure rating | NEMA 2 (IP20) |
| Weight | 0.29 lbs |
| Remote contact | Visual indicator and remote contacts |
| Modules | Pluggable/Replaceable Modules |
| Operating temperature | -40 C to +85 C |
| Warranty | 10-Year warranty |
Specifications from the Citel product page for DAC101US-210. Confirm against the current datasheet before installation.
Citel datasheet for DAC101US-210 (PDF)
Selecting the right SPD
Match the SPD type to the location first. A Type 1 device can sit on the line side of the service disconnect; a Type 2 cannot. Then match the system voltage and configuration, because the configuration sets the modes of protection. Check MCOV against the actual line voltage, and use VPR to judge what the connected equipment sees. In is the repeat rating, Imax is the single shot rating; size on In. Send the one-line and we will pick the model with you. See the data center component map for where SPDs land in a facility.
Cross reference
Have an Eaton, Siemens, Square D, ABB, Phoenix Contact, Mersen or Littelfuse surge protector part number? Send it with the system voltage and we will cross it to the matching Citel model.
