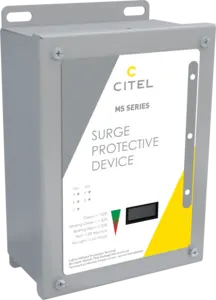

MS100-120Y Citel Type 1 Surge Protector, 120/208 V 3PH Wye, 132 kA Flange Mount
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Citel MS100-120Y is a Type 1 surge protective device for 120/208 V 3PH wye circuits, flange mount mounting, with Imax 132 kA and In 20 kA. It is UL1449 Type 1 LISTED. Applied Control is the Citel representative for Michigan and Indiana. Send the part number, or the one-line and the circuit it protects, and the quote comes back the same business day.
Multi-TMOV Technology surge protective device with visual fault indicator, audible alarm and remote contacts; 10-Year warranty.
Request a QuoteBook 15 Minutes
MS100-120Y specifications
| Model | MS100-120Y |
| Citel item number | 890119 |
| Series | MS100 |
| SPD type | UL1449 Type 1 |
| Listing | UL1449 Type 1 LISTED |
| Nominal voltage | 120/208V |
| Configuration | 3 phase, 4 wire + ground, Wye (3Y) |
| Modes of protection | L-L, L-N, L-G, N-G |
| MCOV | 300/150/150/150V (L-L, L-N, L-G, N-G) |
| VPR | 1000/700/700/700V (L-L, L-N, L-G, N-G) |
| In, nominal discharge current | 20 kA |
| Imax | 132 per phase kA |
| SCCR | 200 kA |
| Mounting | Flange mount |
| Enclosure rating | NEMA 3R, 4, 12 (IP65) |
| Weight | 6 lbs |
| Remote contact | Visual fault indicator, audible alarm and remote contacts |
| Operating temperature | -40 C to +85 C |
| Warranty | 10-Year |
Specifications from the Citel product page for MS100-120Y. Confirm against the current datasheet before installation.
Citel datasheet for MS100-120Y (PDF)
Selecting the right SPD
Match the SPD type to the location first. A Type 1 device can sit on the line side of the service disconnect; a Type 2 cannot. Then match the system voltage and configuration, because the configuration sets the modes of protection. Check MCOV against the actual line voltage, and use VPR to judge what the connected equipment sees. In is the repeat rating, Imax is the single shot rating; size on In. Send the one-line and we will pick the model with you. See the data center component map for where SPDs land in a facility.
Cross reference
Have an Eaton, Siemens, Square D, ABB, Phoenix Contact, Mersen or Littelfuse surge protector part number? Send it with the system voltage and we will cross it to the matching Citel model.
Request a QuoteBook 15 Minutes
Eaton, Siemens, Square D, ABB, Phoenix Contact, Mersen and Littelfuse are trademarks of their respective owners. Applied Control Inc. is not affiliated with these companies. Competitor names appear only to identify products for comparison.
