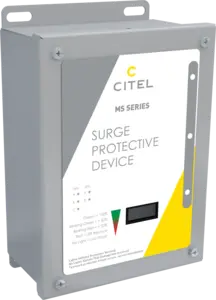

MS200-480D Citel Type 1 Surge Protector, 480 V 3PH Delta, 220 kA Flange Mount
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Citel MS200-480D is a Type 1 surge protective device for 480 V 3PH delta circuits, flange mount mounting, with Imax 220 kA and In 20 kA. It is UL1449 Type 1 LISTED. Applied Control is the Citel representative for Michigan and Indiana. Send the part number, or the one-line and the circuit it protects, and the quote comes back the same business day.
Multi-TMOV Technology, UL1449 Type 1 LISTED, BABA-Build America-Buy America compliant, 220kA Surge Current Rating, Visual fault indicator, audible alarm and remote contacts, 10-Year warranty.
Request a QuoteBook 15 Minutes
MS200-480D specifications
| Model | MS200-480D |
| Citel item number | 890134 |
| Series | MS200 |
| SPD type | UL1449 Type 1 |
| Listing | UL1449 Type 1 LISTED |
| Nominal voltage | 480V AC |
| Configuration | 3-phase, 3-wire + ground, Delta |
| Modes of protection | L-L, L-G |
| MCOV | 1100V (L-L), 550V (L-G) |
| VPR | 3000V (L-L), 1800V (L-G) |
| In, nominal discharge current | 20 kA |
| Imax | 220 kA |
| SCCR | 200 kA |
| Mounting | Flange mount |
| Enclosure rating | NEMA 3R,4, 12 (IP65) |
| Weight | 6 lbs |
| Remote contact | % of protection present LED, audible alarm and remote contacts. Optional surge counter. |
| Operating temperature | -40 C to +85 C |
| Warranty | 10-Year warranty |
Specifications from the Citel product page for MS200-480D. Confirm against the current datasheet before installation.
Citel datasheet for MS200-480D (PDF)
Selecting the right SPD
Match the SPD type to the location first. A Type 1 device can sit on the line side of the service disconnect; a Type 2 cannot. Then match the system voltage and configuration, because the configuration sets the modes of protection. Check MCOV against the actual line voltage, and use VPR to judge what the connected equipment sees. In is the repeat rating, Imax is the single shot rating; size on In. Send the one-line and we will pick the model with you. See the data center component map for where SPDs land in a facility.
Cross reference
Have an Eaton, Siemens, Square D, ABB, Phoenix Contact, Mersen or Littelfuse surge protector part number? Send it with the system voltage and we will cross it to the matching Citel model.
