EJ866AL Hammond Type 4X Aluminum Junction Box, 8 x 6 x 6 in
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

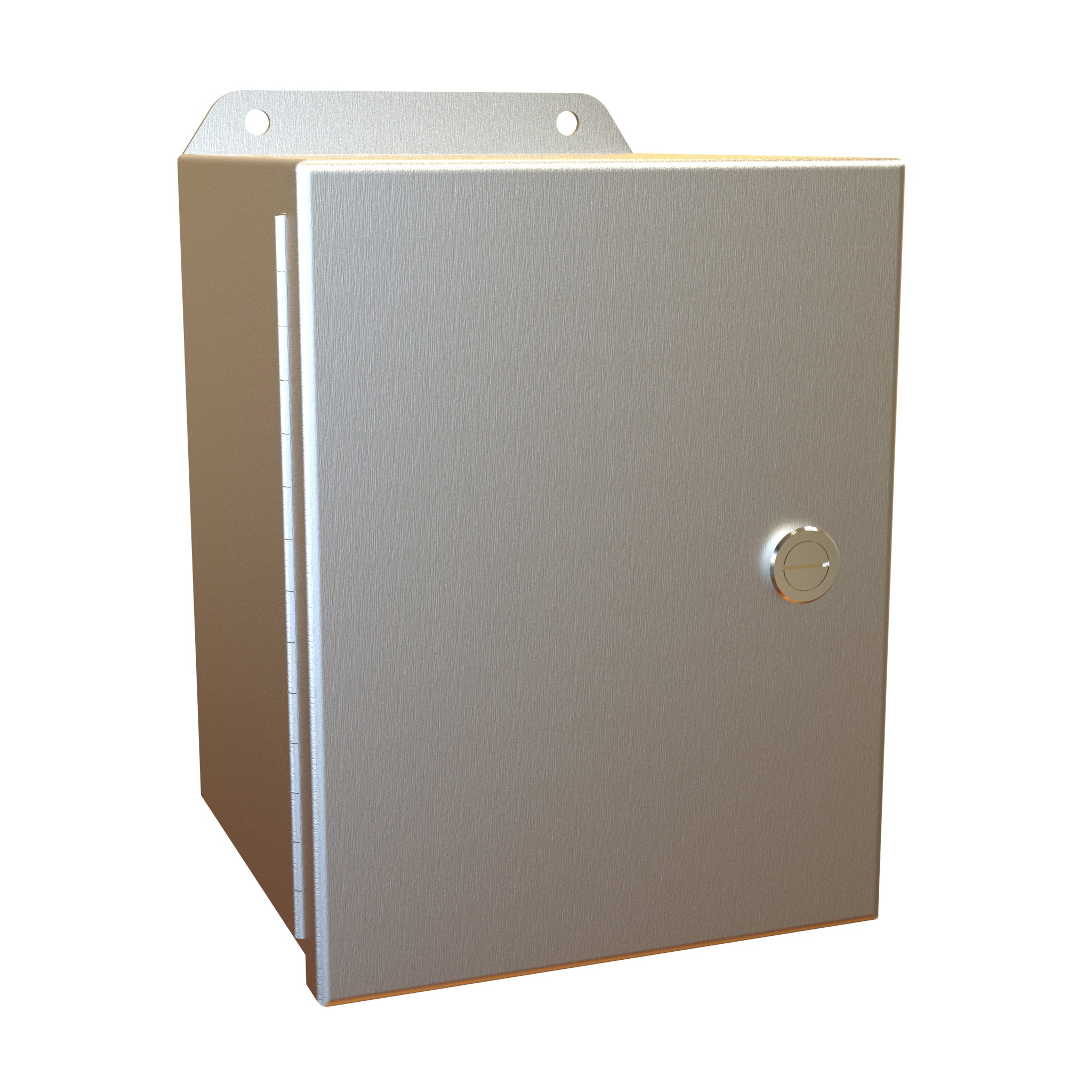

The Hammond Manufacturing EJ866AL is listed by Hammond as N4X, Eclipse Junior encl w/ panel, 8 x 6 x 6, Alum, from the Type 4X Aluminum Junction Box (Eclipse Junior Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
EJ866AL specifications
| Catalog number | EJ866AL |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4X Aluminum Junction Box (Eclipse Junior Series) |
| Hammond description | N4X, Eclipse Junior encl w/ panel, 8 x 6 x 6, Alum |
| Hammond short description | ECLIPSE JR. ALUM, 1 DR WALLMT |
| Size H x W x D | 8 x 6 x 6 in (203 x 152 x 152 mm) |
| Shipping weight | 6 lb (2.72 kg) |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for EJ866AL. Confirm against the current Hammond drawing before you design it in.
Hammond product page for EJ866AL · Hammond Eclipse Junior series specification sheet (PDF) · BUL10020, MISC, ENCLOSURE DETAILS (PDF) · CE Declaration (PDF).
