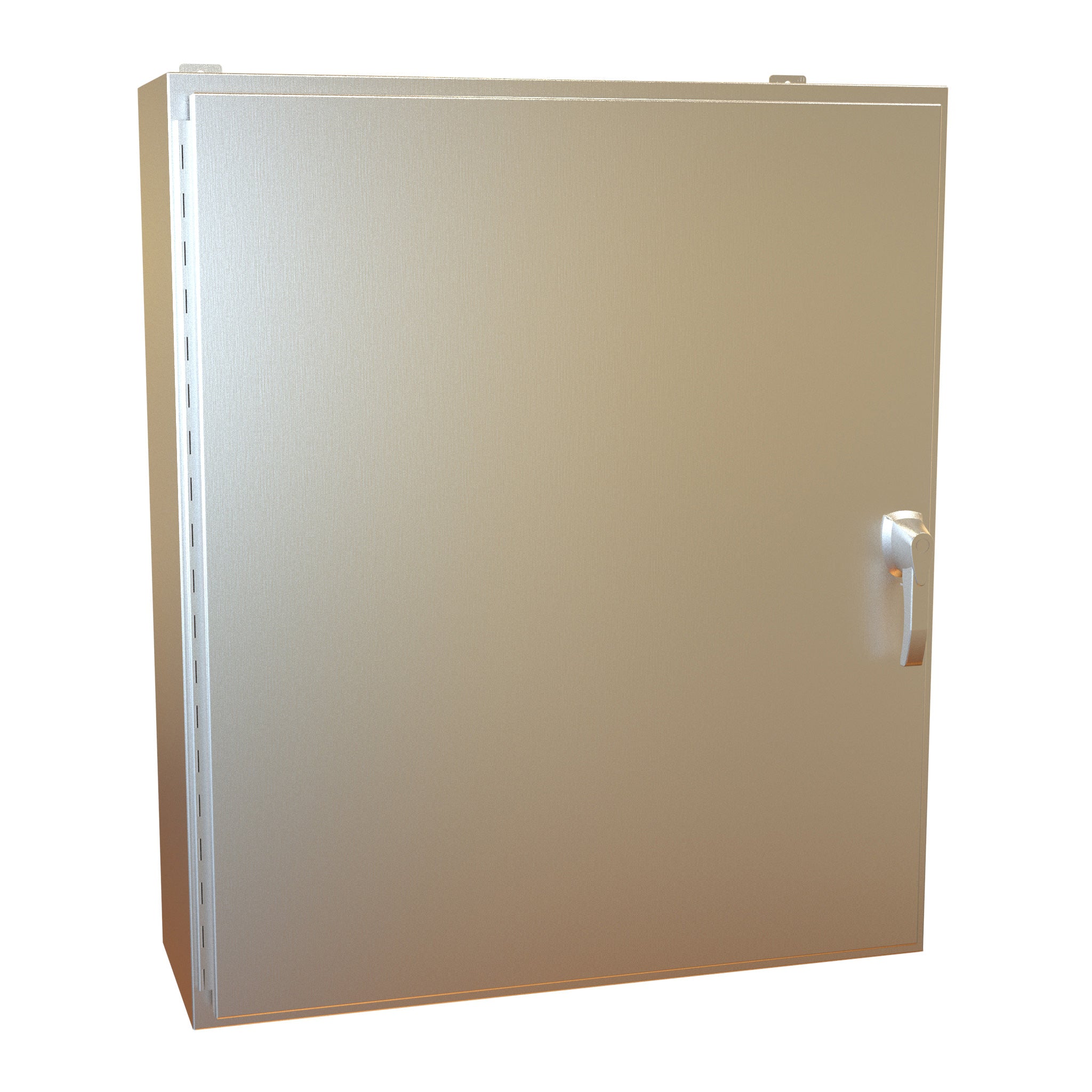

HW423612SSHK Hammond Type 4X Stainless Steel Wallmount Enclosure
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing HW423612SSHK is listed by Hammond as N4X Wallmt, Hinged w/handle, 42 x 36 x 12, 304 SS, from the Type 4X Stainless Steel Wallmount Enclosure (HWSSHK Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
HW423612SSHK specifications
| Catalog number | HW423612SSHK |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4X Stainless Steel Wallmount Enclosure (HWSSHK Series) |
| Hammond description | N4X Wallmt, Hinged w/handle, 42 x 36 x 12, 304 SS |
| Hammond short description | N4X-304 42X36X12 W/HDL |
| Size H x W x D | 42 in x 36 in x 12 in (1,067 mm x 914 mm x 305 mm) |
| Shipping weight | 180 lb (81.65 kg) |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for HW423612SSHK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for HW423612SSHK · Hammond HWSSHK series specification sheet (PDF) · BUL10020, MISC, ENCLOSURE DETAILS (PDF) · CE Declaration (PDF).
