B100BTW37XX Micron 100VA ImperviTRAN Control Transformer, 230/460/575 V Primary, 95/115 V Secondary
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

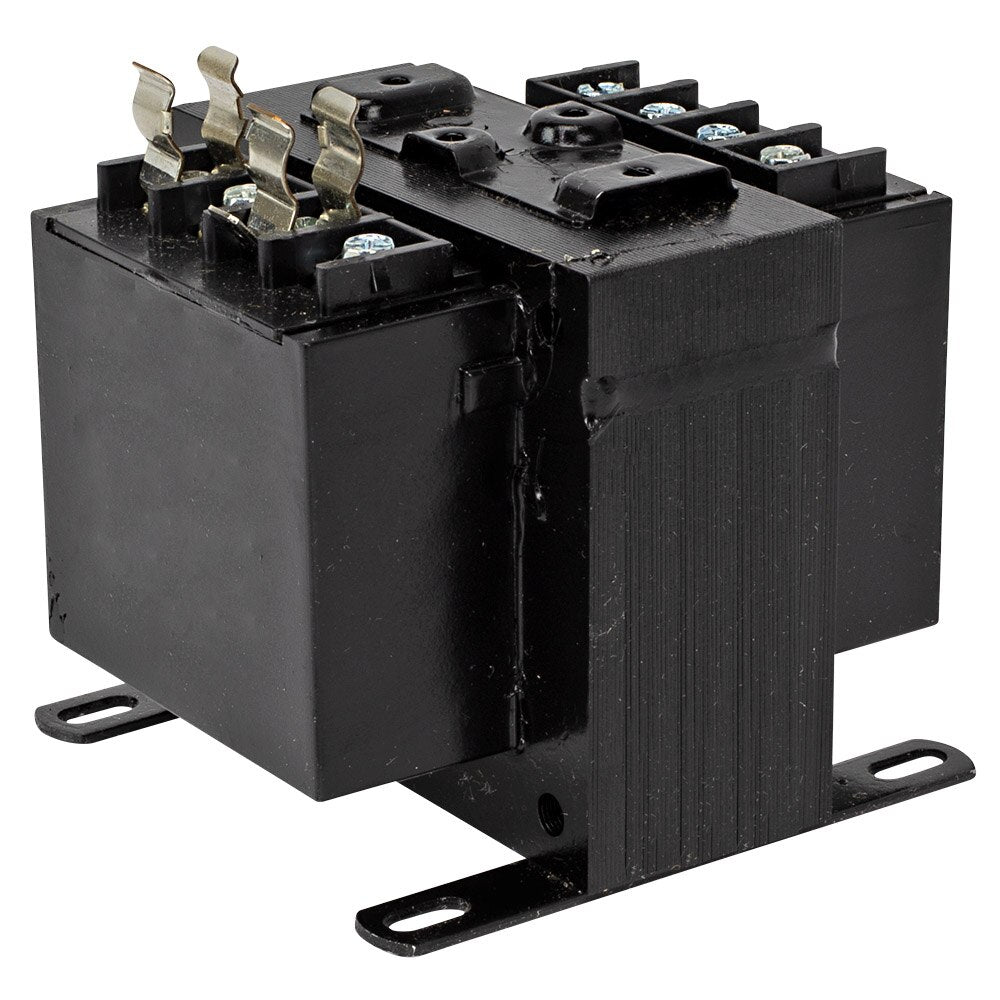

Micron B100BTW37XX โ 100VA ImperviTRAN Control Transformer
The Micron B100BTW37XX is a 100VA ImperviTRAN epoxy-encapsulated control transformer. Primary: 230/460/575V. Secondary: 95/115V. Single-phase, 50/60Hz. Features Micron's legendary epoxy encapsulation for superior moisture and contaminant resistance. UL/cUL Listed. Backed by Micron's industry-leading 20-year warranty. Made in the USA.
๐ B100BTW37XX Specifications
| Part Number | B100BTW37XX |
| Manufacturer | Micron Industries Corporation |
| Series | ImperviTRAN |
| VA Rating | 100VA |
| Full Load Amps | 1.05/0.87A |
| Primary Voltage | 230/460/575V |
| Secondary Voltage | 95/115V |
| Voltage Group | Group H |
| Phase / Freq | Single Phase, 50/60Hz |
| Construction | Epoxy Encapsulated |
| Approx. Weight | 5.5 lbs |
| Certifications | UL/cUL Listed (File #E46323) |
| Warranty | 20-Year Manufacturer Warranty |
๐ Documentation & Downloads
๐ Cross-Reference & Alternatives
The B100BTW37XX replaces comparable 100VA control transformers with 230/460/575V primary and 95/115V secondary from Hammond Power Solutions, Sola, Acme, Jefferson, Eaton, Square D, Schneider Electric, Siemens, Allen-Bradley. Contact us for an exact cross-reference.
โ FAQ
What does the B100BTW37XX replace?
Any 100VA control transformer with 230/460/575V primary/95/115V secondary from Hammond (HPS), Sola, Acme, Jefferson, Eaton, Square D/Schneider, Siemens, or Allen-Bradley.
Why choose Micron over Hammond or Acme?
Micron's epoxy encapsulation provides superior environmental protection vs. standard varnish-dipped transformers, plus a 20-year warranty โ the longest in the industry.
