B350-2245-GAF Micron 350VA GlobalTRAN Control Transformer, 230/400/460/575 V Primary, 24/115 V Secondary
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

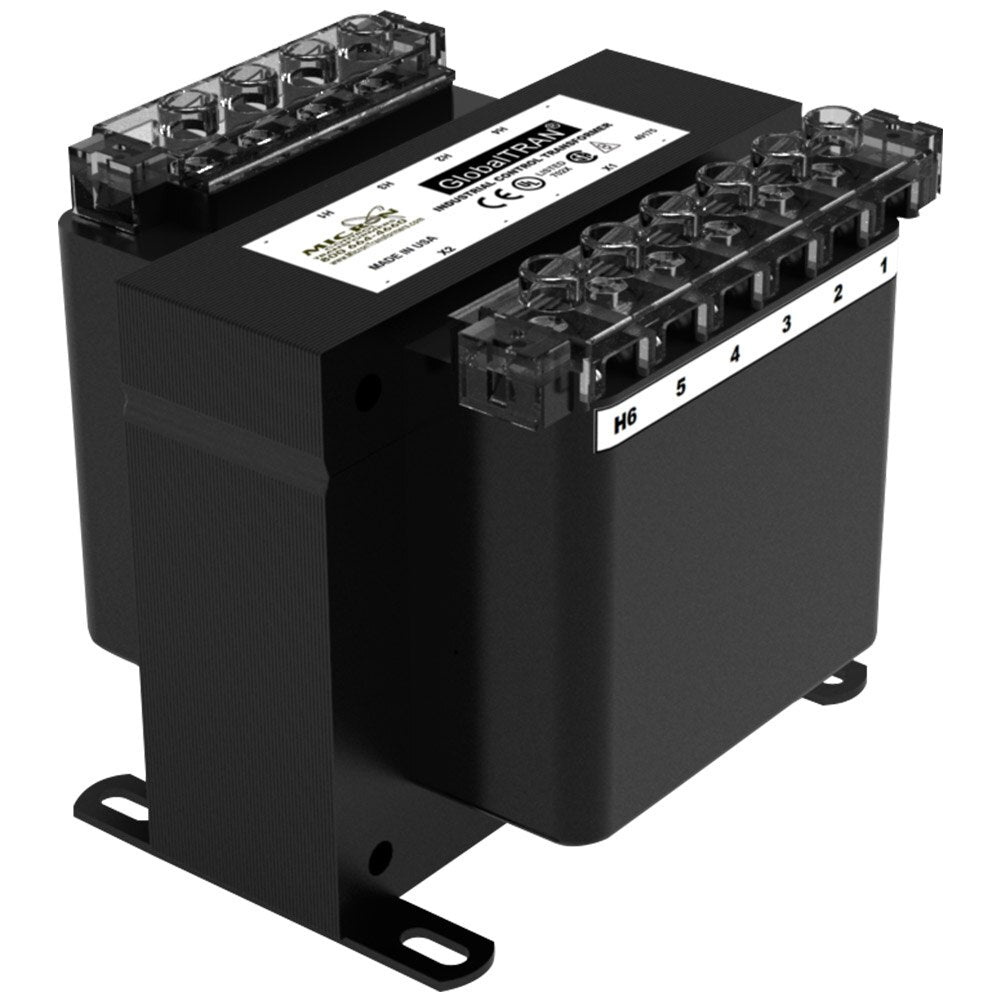

Micron B350-2245-GAF โ 350VA GlobalTRAN Control Transformer
The Micron B350-2245-GAF is a 350VA GlobalTRAN epoxy-encapsulated control transformer. Primary: 230/400/460/575V. Secondary: 24/115V. Single-phase, 50/60Hz. Features Micron's legendary epoxy encapsulation for superior moisture and contaminant resistance. UL/cUL Listed. Backed by Micron's industry-leading 20-year warranty. Made in the USA.
๐ B350-2245-GAF Specifications
| Part Number | B350-2245-GAF |
| Manufacturer | Micron Industries Corporation |
| Series | GlobalTRAN |
| VA Rating | 350VA |
| Full Load Amps | 14.60/3.00A |
| Primary Voltage | 230/400/460/575V |
| Secondary Voltage | 24/115V |
| Voltage Group | GlobalTRAN Intl |
| Phase / Freq | Single Phase, 50/60Hz |
| Construction | Epoxy Encapsulated |
| Approx. Weight | 16.4 lbs |
| Certifications | UL/cUL Listed (File #E46323) |
| Warranty | 20-Year Manufacturer Warranty |
๐ Documentation & Downloads
๐ Cross-Reference & Alternatives
The B350-2245-GAF replaces comparable 350VA control transformers with 230/400/460/575V primary and 24/115V secondary from Hammond Power Solutions, Sola, Acme, Jefferson, Eaton, Square D, Schneider Electric, Siemens, Allen-Bradley. Contact us for an exact cross-reference.
โ FAQ
What does the B350-2245-GAF replace?
Any 350VA control transformer with 230/400/460/575V primary/24/115V secondary from Hammond (HPS), Sola, Acme, Jefferson, Eaton, Square D/Schneider, Siemens, or Allen-Bradley.
Why choose Micron over Hammond or Acme?
Micron's epoxy encapsulation provides superior environmental protection vs. standard varnish-dipped transformers, plus a 20-year warranty โ the longest in the industry.
