B3K0MBT13XXH | Micron 3.0kVA ImperviTRAN Transformer — PRI: 208/230/460V, SEC: 115V
Couldn't load pickup availability
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

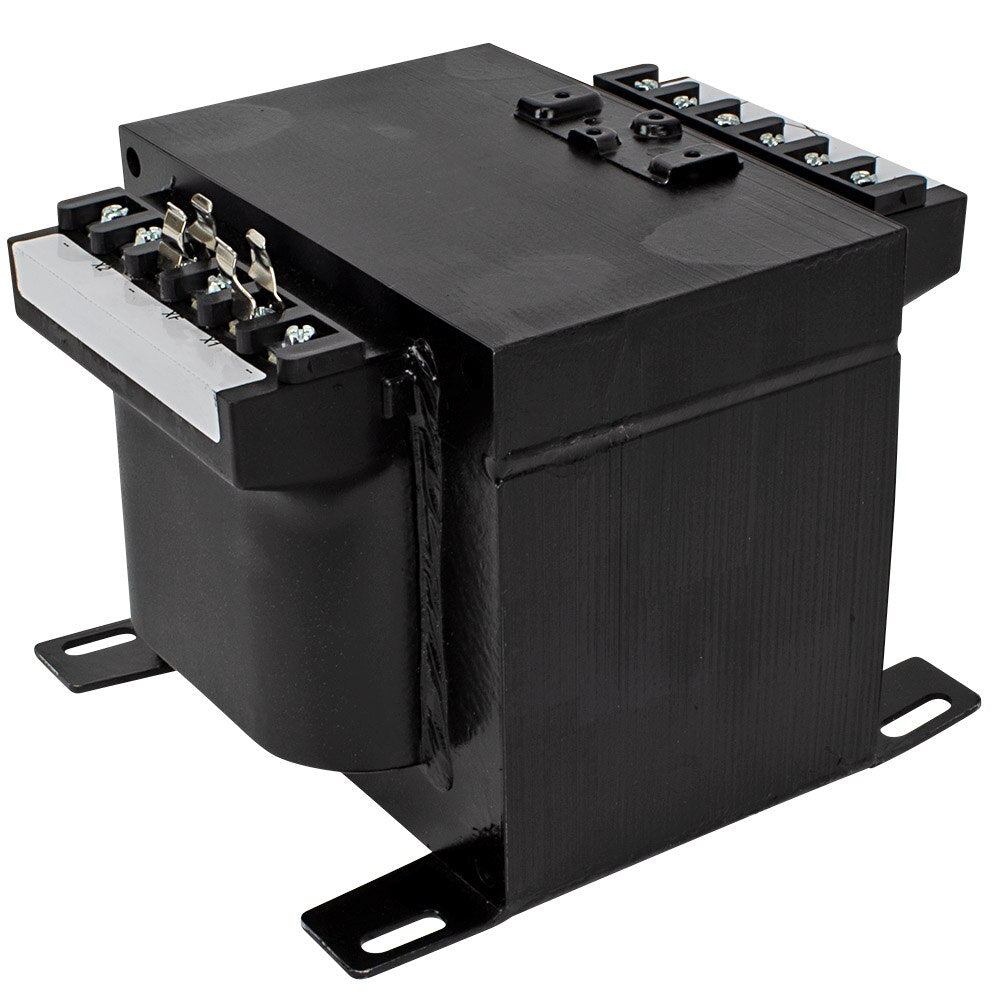

Micron B3K0MBT13XXH — 3.0kVA ImperviTRAN Control Transformer
The Micron B3K0MBT13XXH is a 3.0kVA ImperviTRAN epoxy-encapsulated control transformer. Primary: 208/230/460V. Secondary: 115V. Single-phase, 50/60Hz. Features Micron's legendary epoxy encapsulation for superior moisture and contaminant resistance. UL/cUL Listed. Backed by Micron's industry-leading 20-year warranty. Made in the USA.
📋 B3K0MBT13XXH Specifications
| Part Number | B3K0MBT13XXH |
| Manufacturer | Micron Industries Corporation |
| Series | ImperviTRAN |
| VA Rating | 3.0kVA |
| Full Load Amps | 26.09A |
| Primary Voltage | 208/230/460V |
| Secondary Voltage | 115V |
| Voltage Group | Group L |
| Phase / Freq | Single Phase, 50/60Hz |
| Construction | Epoxy Encapsulated |
| Approx. Weight | 68.0 lbs |
| Certifications | UL/cUL Listed (File #E46323) |
| Warranty | 20-Year Manufacturer Warranty |
📄 Documentation & Downloads
🔄 Cross-Reference & Alternatives
The B3K0MBT13XXH replaces comparable 3.0kVA control transformers with 208/230/460V primary and 115V secondary from Hammond Power Solutions, Sola, Acme, Jefferson, Eaton, Square D, Schneider Electric, Siemens, Allen-Bradley. Contact us for an exact cross-reference.
❓ FAQ
What does the B3K0MBT13XXH replace?
Any 3.0kVA control transformer with 208/230/460V primary/115V secondary from Hammond (HPS), Sola, Acme, Jefferson, Eaton, Square D/Schneider, Siemens, or Allen-Bradley.
Why choose Micron over Hammond or Acme?
Micron's epoxy encapsulation provides superior environmental protection vs. standard varnish-dipped transformers, plus a 20-year warranty — the longest in the industry.
