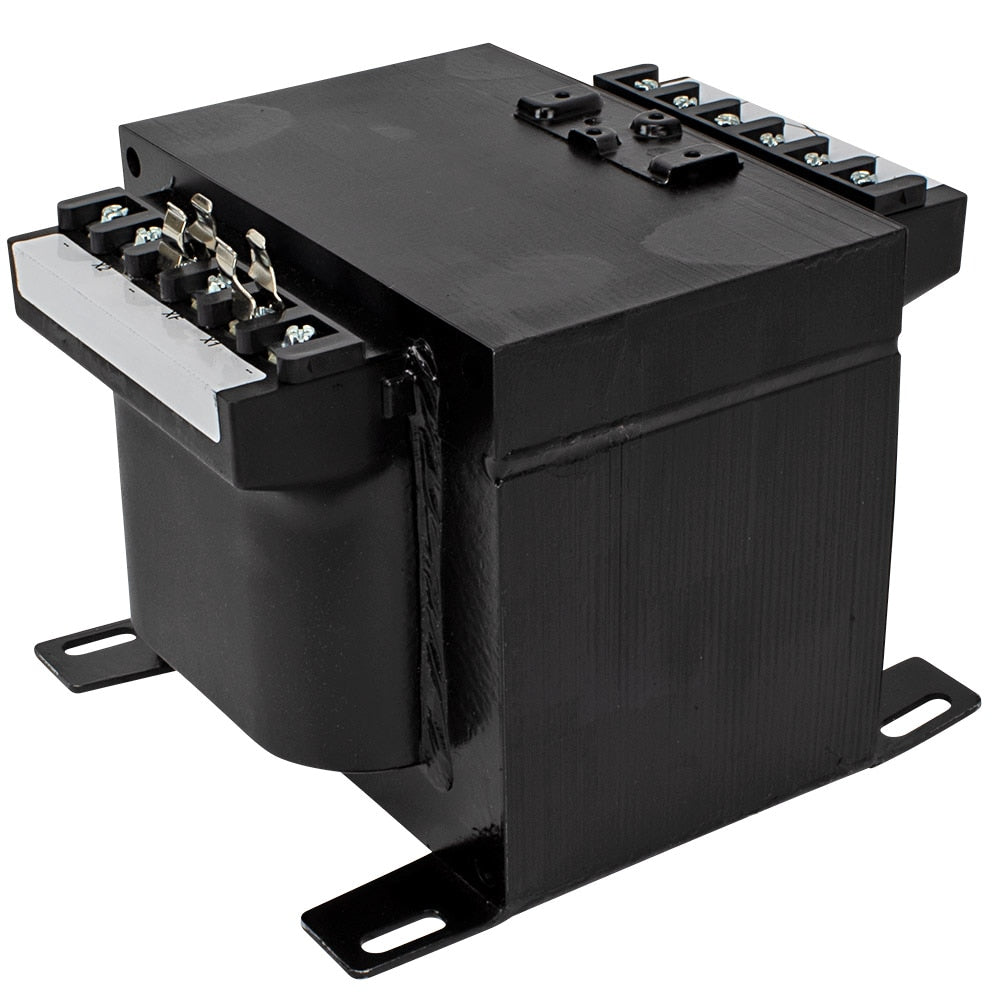

Micron B5K0BTZ13JXH — 5.0kVA ImperviTRAN Control Transformer
The Micron B5K0BTZ13JXH is a 5.0kVA ImperviTRAN epoxy-encapsulated control transformer. Primary: 220x440/230x460/240x480V. Secondary: 110/115/120V. Single-phase, 50/60Hz. Features Micron's legendary epoxy encapsulation for superior moisture and contaminant resistance. UL/cUL Listed. Backed by Micron's industry-leading 20-year warranty. Made in the USA.
📋 B5K0BTZ13JXH Specifications
| Part Number | B5K0BTZ13JXH |
| Manufacturer | Micron Industries Corporation |
| Series | ImperviTRAN |
| VA Rating | 5.0kVA |
| Full Load Amps | 43.48A |
| Primary Voltage | 220x440/230x460/240x480V |
| Secondary Voltage | 110/115/120V |
| Voltage Group | Group A |
| Phase / Freq | Single Phase, 50/60Hz |
| Construction | Epoxy Encapsulated |
| Approx. Weight | 109.4 lbs |
| Certifications | UL/cUL Listed (File #E46323) |
| Warranty | 20-Year Manufacturer Warranty |
📄 Documentation & Downloads
🔄 Cross-Reference & Alternatives
The B5K0BTZ13JXH replaces comparable 5.0kVA control transformers with 220x440/230x460/240x480V primary and 110/115/120V secondary from Hammond Power Solutions, Sola, Acme, Jefferson, Eaton, Square D, Schneider Electric, Siemens, Allen-Bradley. Contact us for an exact cross-reference.
❓ FAQ
What does the B5K0BTZ13JXH replace?
Any 5.0kVA control transformer with 220x440/230x460/240x480V primary/110/115/120V secondary from Hammond (HPS), Sola, Acme, Jefferson, Eaton, Square D/Schneider, Siemens, or Allen-Bradley.
Why choose Micron over Hammond or Acme?
Micron's epoxy encapsulation provides superior environmental protection vs. standard varnish-dipped transformers, plus a 20-year warranty — the longest in the industry.
