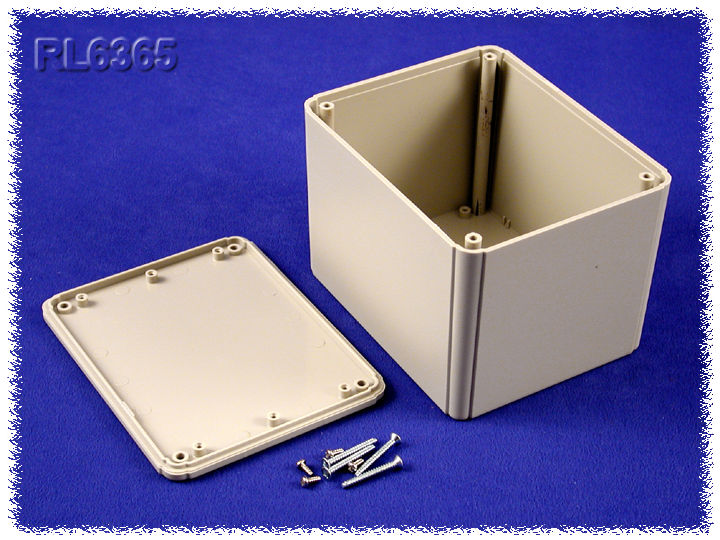

RL6365 Hammond ABS Plastic Project Enclosure, 4.92 x 3.94 x 3.54 in, IP54, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing RL6365 is listed by Hammond as enclosure, plastic, from the ABS Plastic Project Enclosures (RL Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
RL6365 specifications
| Catalog number | RL6365 |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Project Enclosures (RL Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | ABS PROJECT ENCLOSURE |
| Size L x W x H | 4.92 x 3.94 x 3.54 in (125 x 100 x 90 mm) |
| Shipping weight | 0.4 lb (0.18 kg) |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Project box, general purpose |
| Max. P.C. Board Length (mm) | 117.53 |
| Max. P.C. Board Width (mm) | 92.53 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for RL6365. Confirm against the current Hammond drawing before you design it in.
Hammond product page for RL6365 · Hammond RL series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF) · RL6365 PCB dim (mm).dxf.
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
