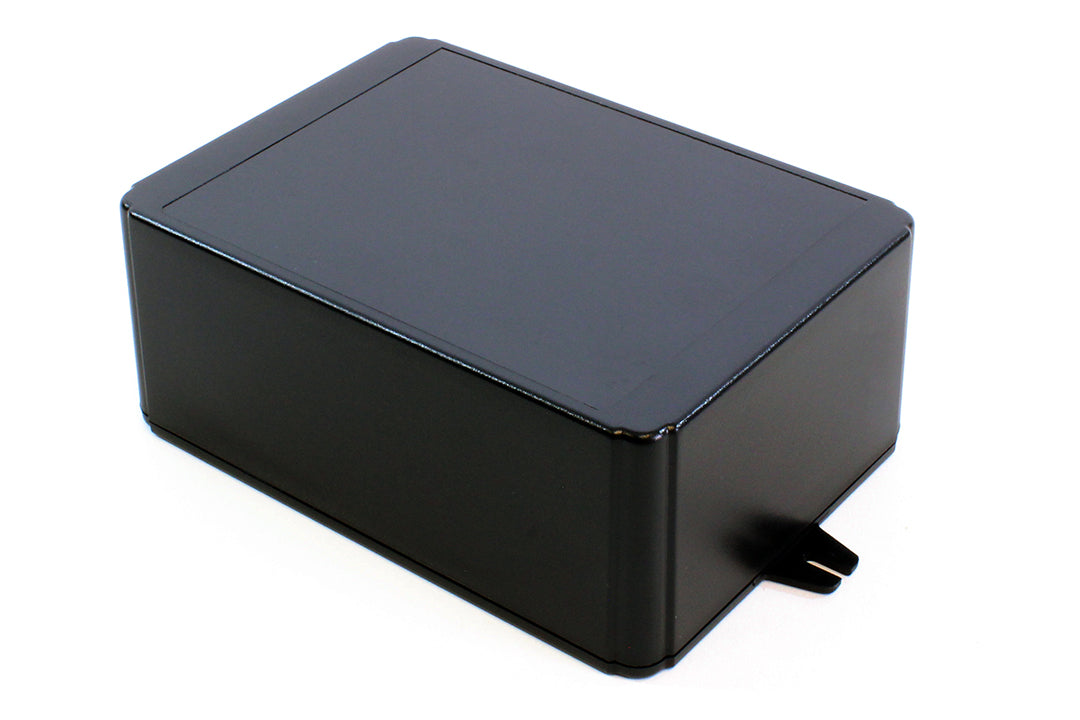

RL6555-FBK Hammond ABS Plastic Project Enclosure, 6.89 x 4.92 x 2.76 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing RL6555-FBK is listed by Hammond as enclosure, plastic, from the ABS Plastic Project Enclosures (RL Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
RL6555-FBK specifications
| Catalog number | RL6555-FBK |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Project Enclosures (RL Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | ABS FLANGED PROJECT ENCL |
| Size L x W x H | 6.89 x 4.92 x 2.76 in (175 x 125 x 70 mm) |
| Shipping weight | 0.62 lb (0.28 kg) |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Project box, flanged |
| Max. P.C. Board Length (mm) | 166.03 |
| Max. P.C. Board Width (mm) | 109.35 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for RL6555-FBK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for RL6555-FBK · Hammond RL series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF) · RL6555-FBK PCB dim (mm).dxf.
