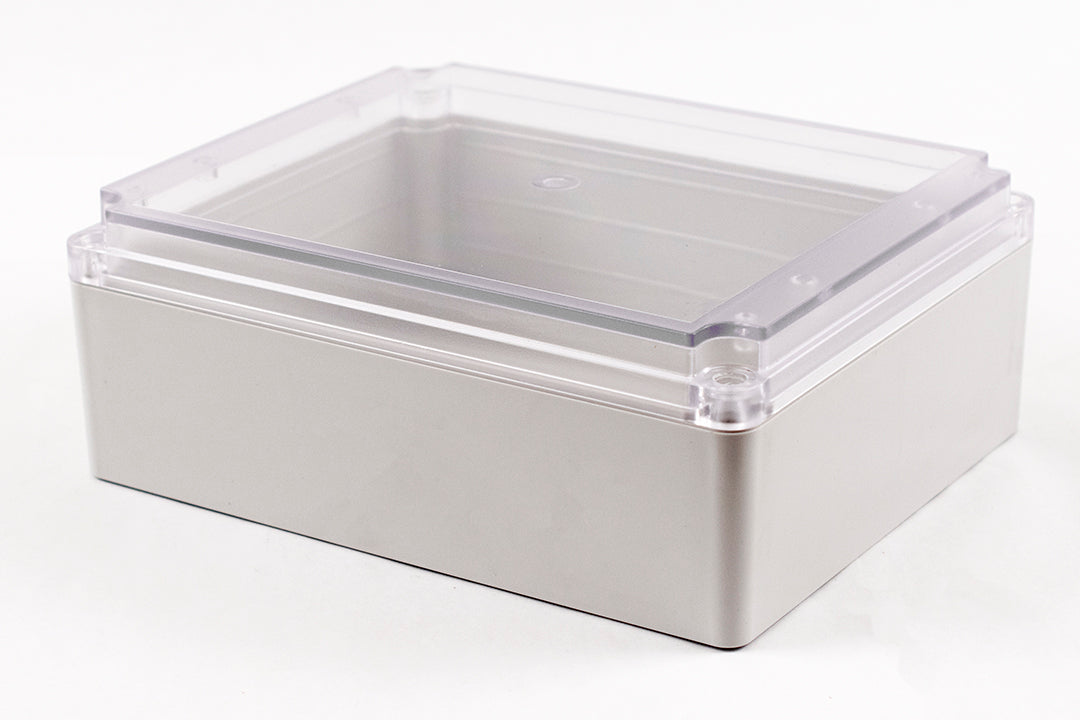

RP1610C Hammond Water-Tight ABS & Polycarbonate Enclosure, 9.84 x 7.87 x 3.74 in, IP65, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing RP1610C is listed by Hammond as enclosure, plastic, from the Water-Tight ABS & Polycarbonate Enclosures (RP Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
RP1610C specifications
| Catalog number | RP1610C |
| Manufacturer | Hammond Manufacturing |
| Series | Water-Tight ABS & Polycarbonate Enclosures (RP Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | PC WATERTIGHT CLEAR LID |
| Size L x W x H | 9.84 x 7.87 x 3.74 in (250 x 200 x 95 mm) |
| Shipping weight | 0.01 lb (0.00 kg) |
| Material | Polycarbonate |
| Color | Light Gray |
| Flame Rating | UL94 V-2 |
| IP Rating | IP65 |
| Product Category | Enclosures |
| Type | General purpose, water-tight |
| Max. P.C. Board Length (mm) | 235 |
| Max. P.C. Board Width (mm) | 186 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for RP1610C. Confirm against the current Hammond drawing before you design it in.
Hammond product page for RP1610C · Hammond RP series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
