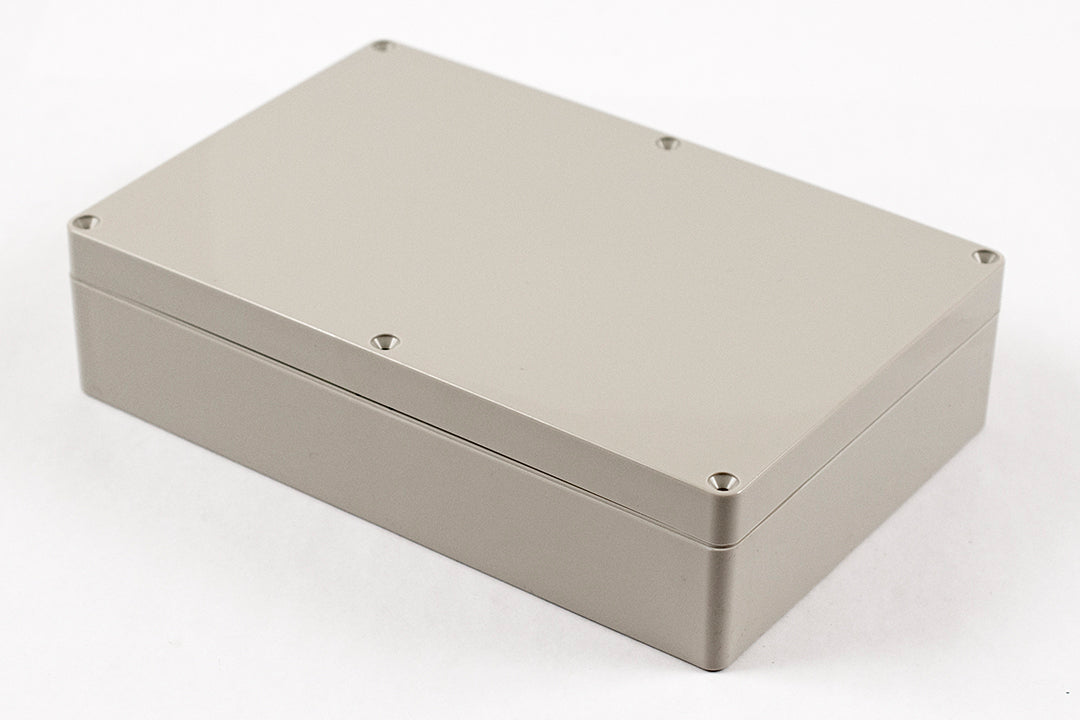

RZ0317 Hammond Water-Tight ABS & Polycarbonate Enclosure, 8.74 x 5.75 x 2.17 in, IP65, Beige
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing RZ0317 is listed by Hammond as ABS WATERTIGHT, from the Water-Tight ABS & Polycarbonate Enclosures (RZ Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
RZ0317 specifications
| Catalog number | RZ0317 |
| Manufacturer | Hammond Manufacturing |
| Series | Water-Tight ABS & Polycarbonate Enclosures (RZ Series) |
| Hammond short description | ABS WATERTIGHT |
| Size L x W x H | 8.74 x 5.75 x 2.17 in (222 x 146 x 55 mm) |
| Shipping weight | 0.97 lb (0.44 kg) |
| Material | ABS Plastic |
| Color | Beige |
| Flame Rating | UL94 HB |
| IP Rating | IP65 |
| Product Category | Enclosures |
| Type | Water-tight |
| Max. P.C. Board Length (mm) | 213.87 |
| Max. P.C. Board Width (mm) | 137.87 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for RZ0317. Confirm against the current Hammond drawing before you design it in.
Hammond product page for RZ0317 · Hammond RZ series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF) · RZ0317 PCB.pdf (PDF).
