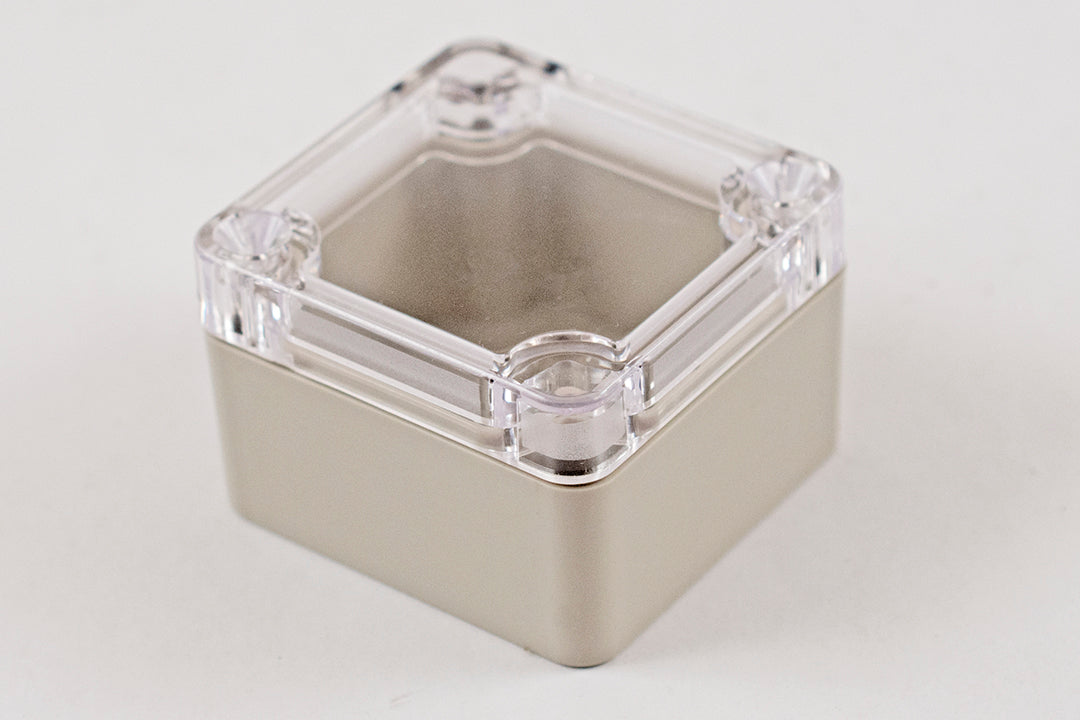

RZ0362C Hammond Water-Tight ABS & Polycarbonate Enclosure, 2.05 x 1.97 x 1.38 in, IP65, Beige
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing RZ0362C is listed by Hammond as ABS WATERTIGHT CLEAR LID, from the Water-Tight ABS & Polycarbonate Enclosures (RZ Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
RZ0362C specifications
| Catalog number | RZ0362C |
| Manufacturer | Hammond Manufacturing |
| Series | Water-Tight ABS & Polycarbonate Enclosures (RZ Series) |
| Hammond short description | ABS WATERTIGHT CLEAR LID |
| Size L x W x H | 2.05 x 1.97 x 1.38 in (52 x 50 x 35 mm) |
| Shipping weight | 0.11 lb (0.05 kg) |
| Material | ABS Plastic |
| Color | Beige |
| Flame Rating | UL94 HB |
| IP Rating | IP65 |
| Product Category | Enclosures |
| Type | Water-tight |
| Max. P.C. Board Length (mm) | 44.77 |
| Max. P.C. Board Width (mm) | 42.77 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for RZ0362C. Confirm against the current Hammond drawing before you design it in.
Hammond product page for RZ0362C · Hammond RZ series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF) · RZ0362C PCB.pdf (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
