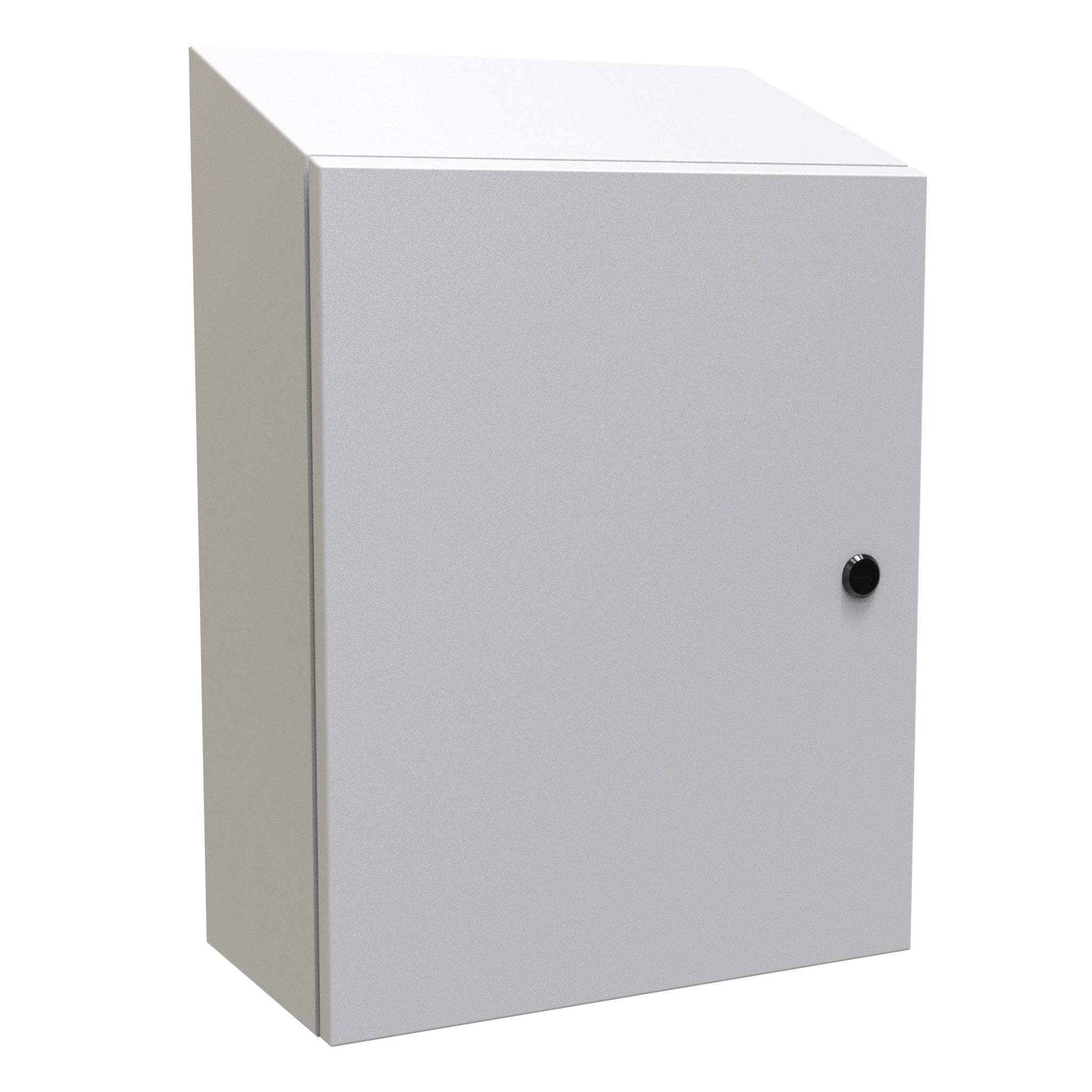

ST20168LG Hammond Type 4 Mild Steel Wallmount Enclosure with Sloped Top, 20 x 16 x 8 in
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing ST20168LG is listed by Hammond as N4,12 Eclipse Slope Top Encl., 20 x 16 x 8, Steel/Lt. Gray, from the Type 4 Mild Steel Wallmount Enclosure w/ Sloped Top (ST Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
ST20168LG specifications
| Catalog number | ST20168LG |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4 Mild Steel Wallmount Enclosure w/ Sloped Top (ST Series) |
| Hammond description | N4,12 Eclipse Slope Top Encl., 20 x 16 x 8, Steel/Lt. Gray |
| Hammond short description | SLOPE TOP 20X16X8 |
| Size H x W x D | 20 x 16 x 8 in (508 x 406 x 203 mm) |
| Shipping weight | 29 lb (13.15 kg) |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for ST20168LG. Confirm against the current Hammond drawing before you design it in.
Hammond product page for ST20168LG · Hammond ST series specification sheet (PDF) · BUL10020, MISC, ENCLOSURE DETAILS (PDF) · BUL10136, ECLIPSE, ASSEMBLY (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
