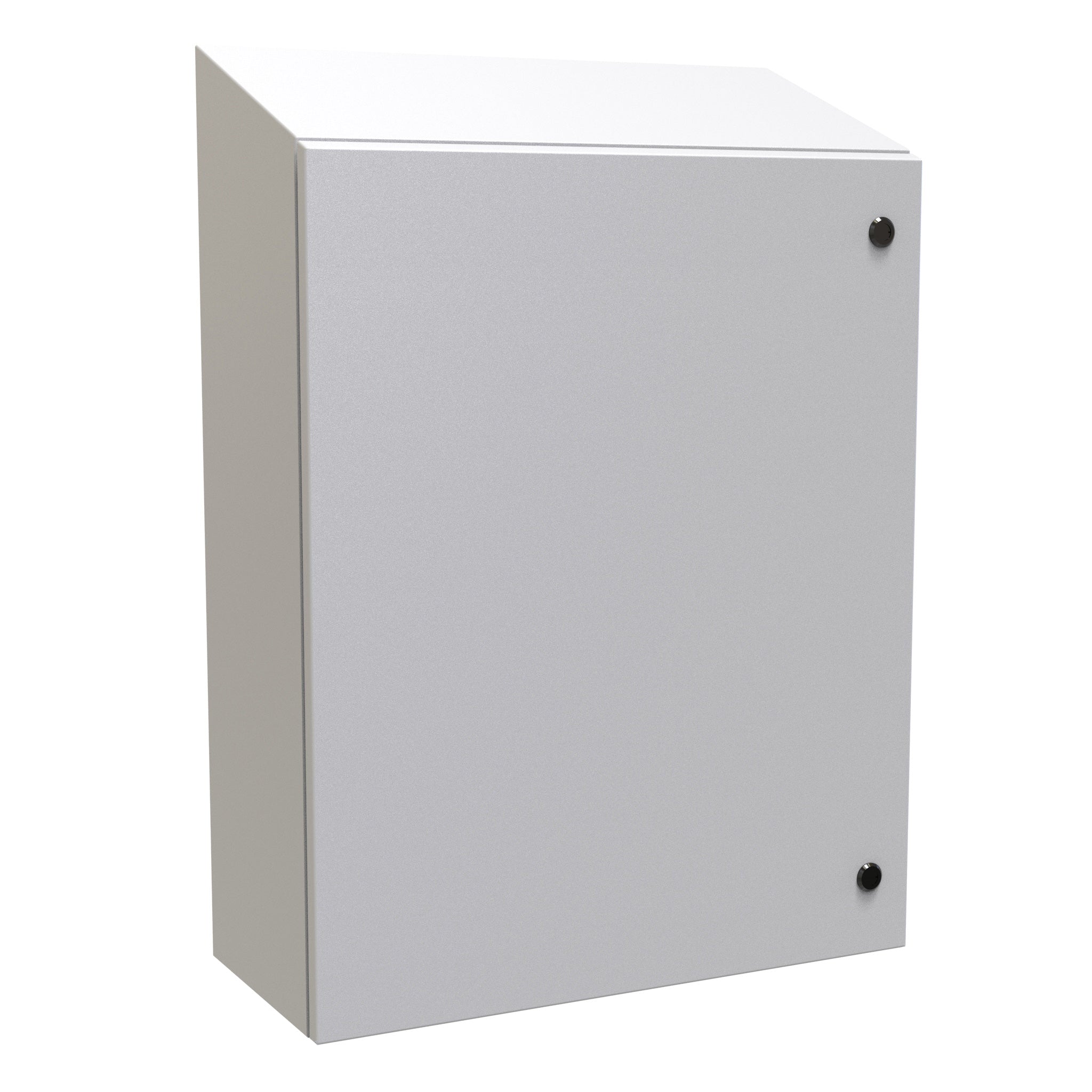

ST302410LG Hammond Type 4 Mild Steel Wallmount Enclosure with Sloped Top, 30 x 24 x 10 in
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing ST302410LG is listed by Hammond as N4,12 Eclipse Slope Top Encl., 30 x 24 x 10, Steel/Lt. Gray, from the Type 4 Mild Steel Wallmount Enclosure w/ Sloped Top (ST Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
ST302410LG specifications
| Catalog number | ST302410LG |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4 Mild Steel Wallmount Enclosure w/ Sloped Top (ST Series) |
| Hammond description | N4,12 Eclipse Slope Top Encl., 30 x 24 x 10, Steel/Lt. Gray |
| Hammond short description | SLOPE TOP 30X24X10 |
| Size H x W x D | 30 x 24 x 10 in (762 x 610 x 254 mm) |
| Shipping weight | 61 lb (27.67 kg) |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for ST302410LG. Confirm against the current Hammond drawing before you design it in.
Hammond product page for ST302410LG · Hammond ST series specification sheet (PDF) · BUL10020, MISC, ENCLOSURE DETAILS (PDF) · BUL10136, ECLIPSE, ASSEMBLY (PDF).
