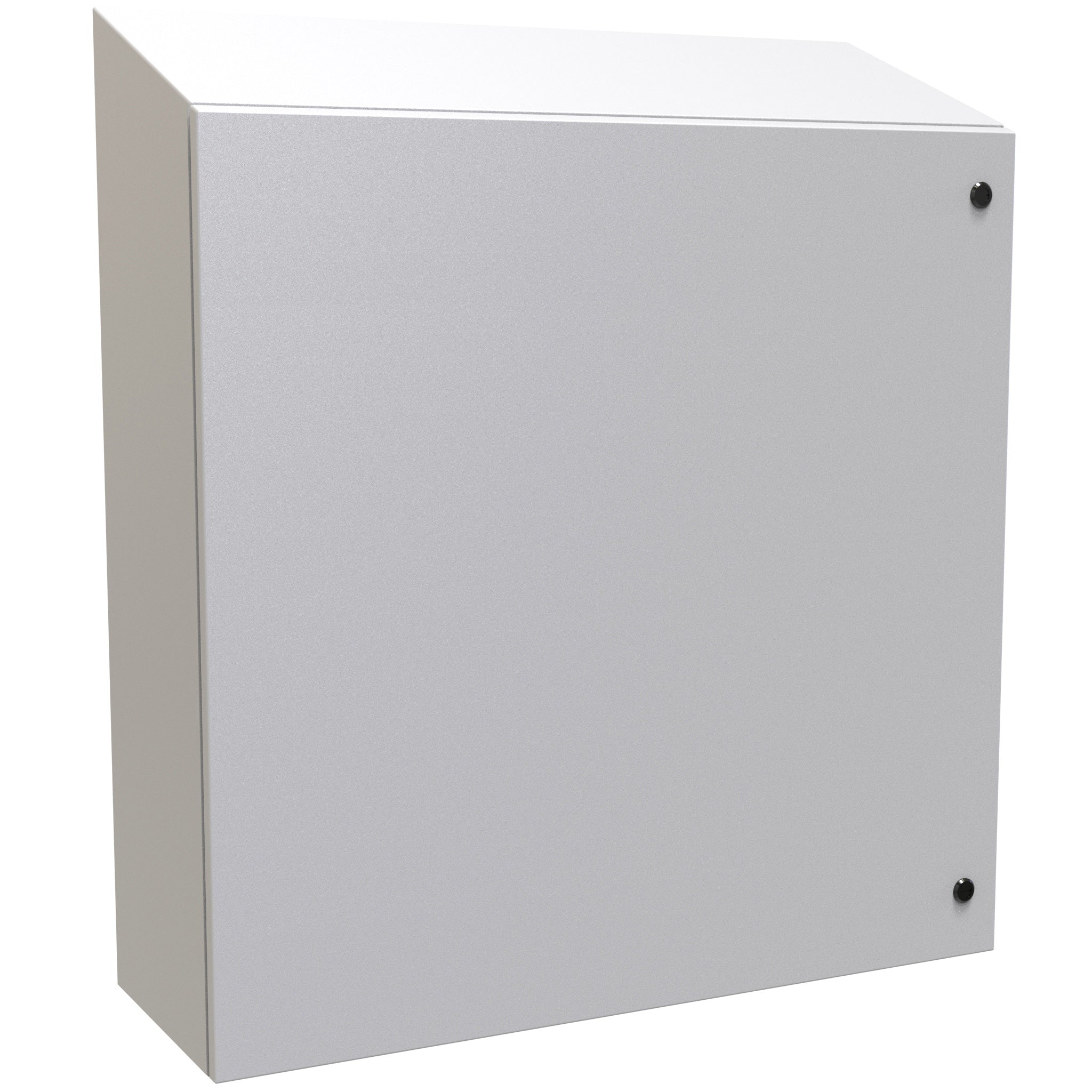

ST363612LG Hammond Type 4 Mild Steel Wallmount Enclosure with Sloped Top, 36 x 36 x 12 in
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing ST363612LG is listed by Hammond as N4,12 Eclipse Slope Top Encl., 36 x 36 x 12, Steel/Lt. Gray, from the Type 4 Mild Steel Wallmount Enclosure w/ Sloped Top (ST Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
ST363612LG specifications
| Catalog number | ST363612LG |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4 Mild Steel Wallmount Enclosure w/ Sloped Top (ST Series) |
| Hammond description | N4,12 Eclipse Slope Top Encl., 36 x 36 x 12, Steel/Lt. Gray |
| Hammond short description | SLOPE TOP 36X36X12 |
| Size H x W x D | 36 x 36 x 12 in (914 x 914 x 305 mm) |
| Shipping weight | 112 lb (50.80 kg) |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for ST363612LG. Confirm against the current Hammond drawing before you design it in.
Hammond product page for ST363612LG · Hammond ST series specification sheet (PDF) · CE Declaration (PDF).
