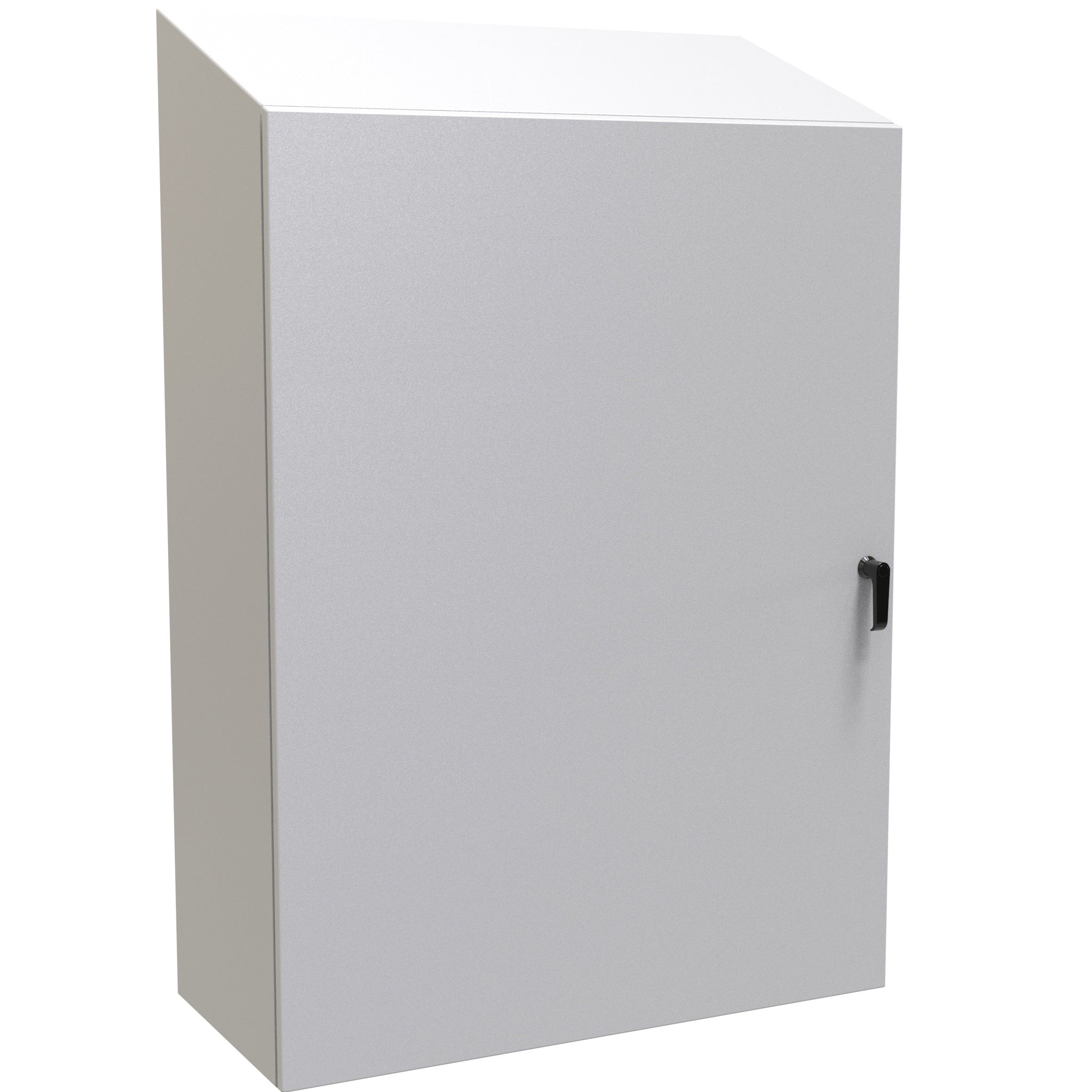

ST483616LG Hammond Type 4 Mild Steel Wallmount Enclosure with Sloped Top
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing ST483616LG is listed by Hammond as N4,12 Eclipse Slope Top Encl., 48 x 36 x 16, Steel/Lt. Gray, from the Type 4 Mild Steel Wallmount Enclosure w/ Sloped Top (ST Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
ST483616LG specifications
| Catalog number | ST483616LG |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4 Mild Steel Wallmount Enclosure w/ Sloped Top (ST Series) |
| Hammond description | N4,12 Eclipse Slope Top Encl., 48 x 36 x 16, Steel/Lt. Gray |
| Hammond short description | SLOPE TOP 48X36X16 |
| Size H x W x D | 48 in x 36 in x 16 in (1,219 mm x 914 mm x 406 mm) |
| Shipping weight | 156 lb (70.76 kg) |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for ST483616LG. Confirm against the current Hammond drawing before you design it in.
Hammond product page for ST483616LG · Hammond ST series specification sheet (PDF) · CE Declaration (PDF).
