EP2504C | Teco Westinghouse 250 HP MAX-E1 TEFC Motor — 1800 RPM
Couldn't load pickup availability
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

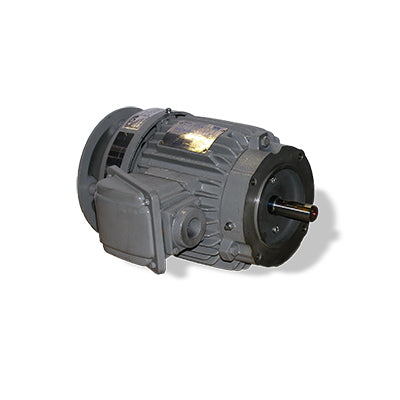

Teco Westinghouse EP2504C — MAX-E1 Industrial Motor
The Teco Westinghouse EP2504C (MAX-E1 series) is a 250 HP, MAX E1 NEMA Premium Efficiency Severe Duty TEFC, C-Face, 1800 RPM three-phase induction motor. Built for severe-duty industrial environments, this motor delivers reliable performance in continuous-duty applications with NEMA Premium efficiency ratings to reduce energy costs over the life of the motor.
Designed for demanding environments, features include oversized bearings, cast iron frame and endshields, corrosion-resistant epoxy finish, Class F insulation system, and enhanced shaft sealing.
Key Specifications
| Part Number | EP2504C |
| Manufacturer | Teco Westinghouse |
| Product Line | MAX-E1 |
| Horsepower | 250 HP |
| Speed | 1800 RPM |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Mounting | C-Face |
| Full Load Amps | 277 A |
| Shipping Weight | 2608 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse EP2504C is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the EP2504C and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco EP2504C replace?
The EP2504C is a drop-in replacement for comparable 250 HP TEFC motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the EP2504C NEMA Premium Efficient?
Yes — Teco Westinghouse MAX-E1 motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the EP2504C?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the EP2504C carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
