JMP0502 | Teco Westinghouse 50 HP TEFC Motor — 3600 RPM
Couldn't load pickup availability
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

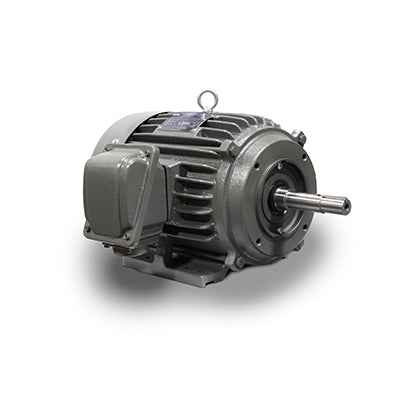

Teco Westinghouse JMP0502 Industrial Motor
The Teco Westinghouse JMP0502 is a 50 HP, Closed Coupled Pump TEFC JM, 3600 RPM three-phase induction motor. Engineered for close-coupled pump applications, this motor delivers reliable performance in continuous-duty applications across a wide range of operating conditions.
Standard features include Class F insulation, precision-machined shaft, and dynamically balanced rotor for low vibration and extended bearing life.
Key Specifications
| Part Number | JMP0502 |
| Manufacturer | Teco Westinghouse |
| Horsepower | 50 HP |
| Speed | 3600 RPM |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Full Load Amps | 54.7 A |
| Shipping Weight | 926 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse JMP0502 is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the JMP0502 and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco JMP0502 replace?
The JMP0502 is a drop-in replacement for comparable 50 HP TEFC motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the JMP0502 NEMA Premium Efficient?
Yes — Teco Westinghouse motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the JMP0502?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the JMP0502 carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
