JPP0304 | Teco Westinghouse 30 HP TEFC Motor — 1800 RPM
Couldn't load pickup availability
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

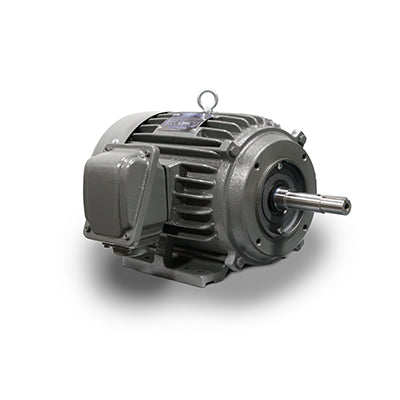

Teco Westinghouse JPP0304 Industrial Motor
The Teco Westinghouse JPP0304 is a 30 HP, Closed Coupled Pump TEFC JP, 1800 RPM three-phase induction motor. Engineered for close-coupled pump applications, this motor delivers reliable performance in continuous-duty applications across a wide range of operating conditions.
Standard features include Class F insulation, precision-machined shaft, and dynamically balanced rotor for low vibration and extended bearing life.
Key Specifications
| Part Number | JPP0304 |
| Manufacturer | Teco Westinghouse |
| Horsepower | 30 HP |
| Speed | 1800 RPM |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Full Load Amps | 34.3 A |
| Shipping Weight | 507 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse JPP0304 is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the JPP0304 and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco JPP0304 replace?
The JPP0304 is a drop-in replacement for comparable 30 HP TEFC motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the JPP0304 NEMA Premium Efficient?
Yes — Teco Westinghouse motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the JPP0304?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the JPP0304 carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
