KG1506 | Teco Westinghouse 150 HP TEFC Motor — 1200 RPM
Couldn't load pickup availability
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

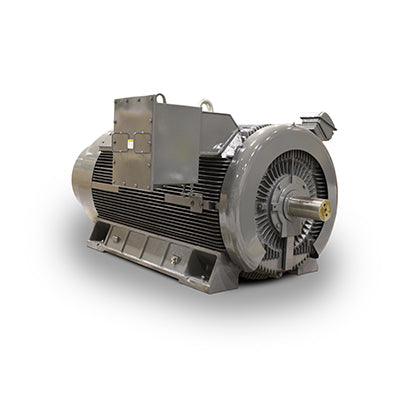

Teco Westinghouse KG1506 Industrial Motor
The Teco Westinghouse KG1506 is a 150 HP, Medium Voltage NEMA Premium Efficiency TEFC, 1200 RPM three-phase induction motor. Engineered for medium-voltage industrial applications, this motor delivers reliable performance in continuous-duty applications with NEMA Premium efficiency ratings to reduce energy costs over the life of the motor.
Engineered for medium-voltage service, this motor features form-wound coils, Class F insulation with VPI treatment, anti-condensation heaters, and RTDs for winding and bearing temperature monitoring.
Key Specifications
| Part Number | KG1506 |
| Manufacturer | Teco Westinghouse |
| Horsepower | 150 HP |
| Speed | 1200 RPM |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Full Load Amps | 20.5 A |
| Shipping Weight | 2730 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse KG1506 is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the KG1506 and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco KG1506 replace?
The KG1506 is a drop-in replacement for comparable 150 HP TEFC motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the KG1506 NEMA Premium Efficient?
Yes — Teco Westinghouse motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the KG1506?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the KG1506 carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
