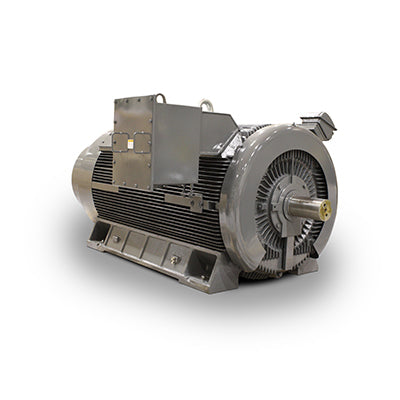

Teco Westinghouse KG2504T Industrial Motor
The Teco Westinghouse KG2504T is a 250 HP, Medium Voltage NEMA Premium Efficiency TEFC, 1800 RPM three-phase induction motor. Engineered for medium-voltage industrial applications, this motor delivers reliable performance in continuous-duty applications with NEMA Premium efficiency ratings to reduce energy costs over the life of the motor.
Engineered for medium-voltage service, this motor features form-wound coils, Class F insulation with VPI treatment, anti-condensation heaters, and RTDs for winding and bearing temperature monitoring.
Key Specifications
| Part Number | KG2504T |
| Manufacturer | Teco Westinghouse |
| Horsepower | 250 HP |
| Speed | 1800 RPM |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Full Load Amps | 32.9 A |
| Shipping Weight | 2640 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse KG2504T is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the KG2504T and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco KG2504T replace?
The KG2504T is a drop-in replacement for comparable 250 HP TEFC motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the KG2504T NEMA Premium Efficient?
Yes — Teco Westinghouse motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the KG2504T?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the KG2504T carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
