MP0506 | Teco Westinghouse 50 HP MAX-IE3 TEFC Motor — 1200 RPM
Couldn't load pickup availability
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

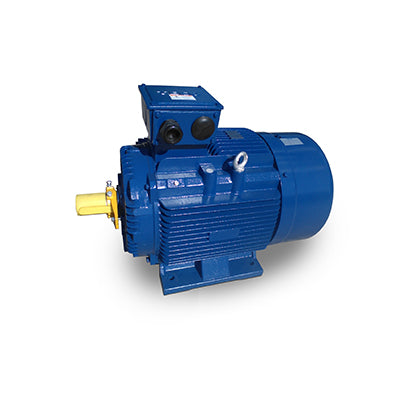

Teco Westinghouse MP0506 — MAX-IE3 Industrial Motor
The Teco Westinghouse MP0506 (MAX-IE3 series) is a 50 HP, MAX-IE3 IEC Metric IE3 Efficiency TEFC, 1200 RPM three-phase induction motor. Engineered for demanding industrial applications, this motor delivers reliable performance in continuous-duty applications across a wide range of operating conditions.
Standard features include Class F insulation, precision-machined shaft, and dynamically balanced rotor for low vibration and extended bearing life.
Key Specifications
| Part Number | MP0506 |
| Manufacturer | Teco Westinghouse |
| Product Line | MAX-IE3 |
| Horsepower | 50 HP |
| Speed | 1200 RPM |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Full Load Amps | 53.6 A |
| Shipping Weight | 1014 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse MP0506 is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the MP0506 and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco MP0506 replace?
The MP0506 is a drop-in replacement for comparable 50 HP TEFC motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the MP0506 NEMA Premium Efficient?
Yes — Teco Westinghouse MAX-IE3 motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the MP0506?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the MP0506 carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
