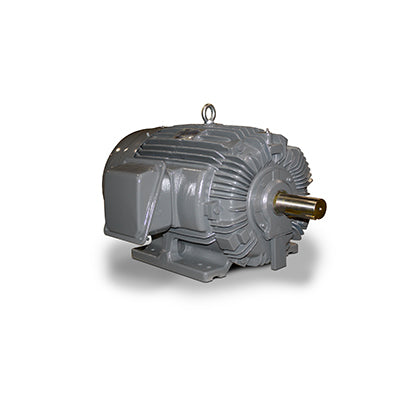

Teco Westinghouse NP0056C — MAX-PE Industrial Motor
The Teco Westinghouse NP0056C (MAX-PE series) is a 5 HP, MAX-PE NEMA Premium Efficiency Severe Duty TEFC Footed C-Face, 1200 RPM three-phase induction motor. Built for severe-duty industrial environments, this motor delivers reliable performance in continuous-duty applications with NEMA Premium efficiency ratings to reduce energy costs over the life of the motor.
Designed for demanding environments, features include oversized bearings, cast iron frame and endshields, corrosion-resistant epoxy finish, Class F insulation system, and enhanced shaft sealing.
Key Specifications
| Part Number | NP0056C |
| Manufacturer | Teco Westinghouse |
| Product Line | MAX-PE |
| Horsepower | 5 HP |
| Speed | 1200 RPM |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Mounting | C-Face |
| Full Load Amps | 6.24 A |
| Shipping Weight | 172 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse NP0056C is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the NP0056C and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco NP0056C replace?
The NP0056C is a drop-in replacement for comparable 5 HP TEFC motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the NP0056C NEMA Premium Efficient?
Yes — Teco Westinghouse MAX-PE motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the NP0056C?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the NP0056C carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
