NP0154 | Teco Westinghouse 15 HP MAX-PE TEFC Motor — 1800 RPM
Couldn't load pickup availability
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

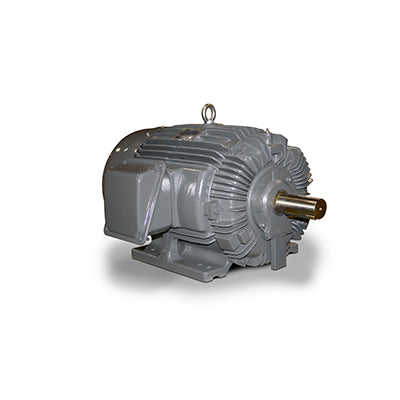

Teco Westinghouse NP0154 — MAX-PE Industrial Motor
The Teco Westinghouse NP0154 (MAX-PE series) is a 15 HP, MAX-PE NEMA Premium Efficiency Severe Duty TEFC Inverter Duty, 1800 RPM three-phase induction motor. Built for severe-duty industrial environments, this motor delivers reliable performance in continuous-duty applications with NEMA Premium efficiency ratings to reduce energy costs over the life of the motor.
Inverter-duty rated per NEMA MG1 Part 31, this motor features 20:1 constant-torque speed range, AEGIS® shaft grounding ring, Class F insulation with Class B temperature rise, and reinforced insulation system for VFD compatibility.
Key Specifications
| Part Number | NP0154 |
| Manufacturer | Teco Westinghouse |
| Product Line | MAX-PE |
| Horsepower | 15 HP |
| Speed | 1800 RPM |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Full Load Amps | 17.3 A |
| Shipping Weight | 290 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse NP0154 is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the NP0154 and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco NP0154 replace?
The NP0154 is a drop-in replacement for comparable 15 HP TEFC motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the NP0154 NEMA Premium Efficient?
Yes — Teco Westinghouse MAX-PE motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the NP0154?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the NP0154 carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
