QT0056 | Teco Westinghouse 5 HP TEFC Motor — 1200 RPM
Couldn't load pickup availability
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

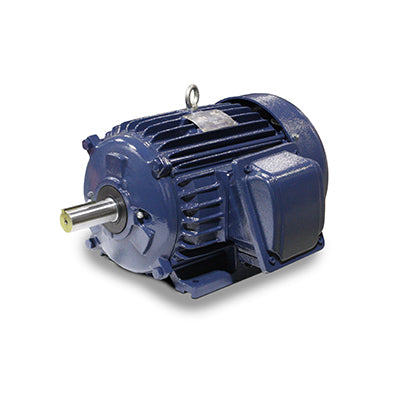

Teco Westinghouse QT0056 Industrial Motor
The Teco Westinghouse QT0056 is a 5 HP, Oil Well Pump TEFC, 1200 RPM three-phase induction motor. Engineered for close-coupled pump applications, this motor delivers reliable performance in continuous-duty applications across a wide range of operating conditions.
Standard features include Class F insulation, precision-machined shaft, and dynamically balanced rotor for low vibration and extended bearing life.
Key Specifications
| Part Number | QT0056 |
| Manufacturer | Teco Westinghouse |
| Horsepower | 5 HP |
| Speed | 1200 RPM |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Full Load Amps | 6.88 A |
| Shipping Weight | 155 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse QT0056 is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the QT0056 and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco QT0056 replace?
The QT0056 is a drop-in replacement for comparable 5 HP TEFC motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the QT0056 NEMA Premium Efficient?
Yes — Teco Westinghouse motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the QT0056?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the QT0056 carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
