WFP1/54C | Teco Westinghouse 1 HP TEFC Motor
Couldn't load pickup availability
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

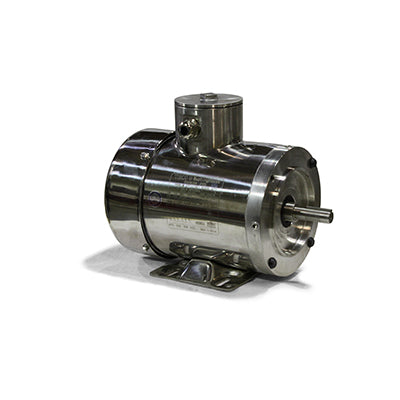

Teco Westinghouse WFP1/54C Industrial Motor
The Teco Westinghouse WFP1/54C is a 1 HP, Stainless Steel Washdown TEFC Footed, C-Face three-phase induction motor. Designed for washdown environments with stainless steel construction, this motor delivers reliable performance in continuous-duty applications across a wide range of operating conditions.
Constructed with 300-series stainless steel housing and hardware for full washdown capability, this motor features IP56 or higher ingress protection, epoxy-sealed windings, and stainless steel nameplate.
Key Specifications
| Part Number | WFP1/54C |
| Manufacturer | Teco Westinghouse |
| Horsepower | 1 HP |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Frame | 54C |
| Mounting | C-Face |
| Full Load Amps | 2.2 A |
| Shipping Weight | 55 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse WFP1/54C is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the WFP1/54C and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco WFP1/54C replace?
The WFP1/54C is a drop-in replacement for comparable 1 HP TEFC motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the WFP1/54C NEMA Premium Efficient?
Yes — Teco Westinghouse motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the WFP1/54C?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the WFP1/54C carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
