WR0102C | Teco Westinghouse 10 HP TEFC Motor — 3600 RPM
Couldn't load pickup availability
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

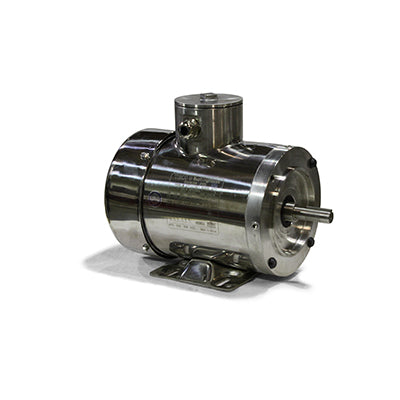

Teco Westinghouse WR0102C Industrial Motor
The Teco Westinghouse WR0102C is a 10 HP, Stainless Steel Washdown TEFC Footed, C-Face, 3600 RPM three-phase induction motor. Designed for washdown environments with stainless steel construction, this motor delivers reliable performance in continuous-duty applications across a wide range of operating conditions.
Constructed with 300-series stainless steel housing and hardware for full washdown capability, this motor features IP56 or higher ingress protection, epoxy-sealed windings, and stainless steel nameplate.
Key Specifications
| Part Number | WR0102C |
| Manufacturer | Teco Westinghouse |
| Horsepower | 10 HP |
| Speed | 3600 RPM |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Mounting | C-Face |
| Full Load Amps | 12.2 A |
| Shipping Weight | 210 lbs |
Cross-Reference: Replacing a Baldor, WEG, Siemens, Marathon, Leeson, or ABB motor with matching HP, speed, and frame? Send us your existing part number and we'll verify the Teco Westinghouse WR0102C is a drop-in replacement.
Applied Control Inc. is an authorized Teco Westinghouse representative in Michigan offering application engineering support, competitive pricing, and fast delivery on the WR0102C and the full Teco Westinghouse motor lineup. Contact us for volume pricing, scheduled deliveries, or help selecting the right motor for your application.
📄 Documentation & Resources
⤓ Teco Westinghouse Product Resources & Catalogs
❓ Frequently Asked Questions
What does the Teco WR0102C replace?
The WR0102C is a drop-in replacement for comparable 10 HP TEFC motors from Baldor, WEG, US Motors, Worldwide Electric, GE Wolong, Marathon, Leeson. Send us your existing part number for an exact cross-reference.
Is the WR0102C NEMA Premium Efficient?
Yes — Teco Westinghouse motors meet or exceed NEMA Premium efficiency standards, reducing energy costs over the motor's lifetime.
What is the lead time on the WR0102C?
Many Teco Westinghouse motors are stocked for quick shipment. Contact Applied Control for current availability and lead times.
What warranty does the WR0102C carry?
Teco Westinghouse motors carry a standard manufacturer warranty. Contact us for specific warranty terms on this model.
