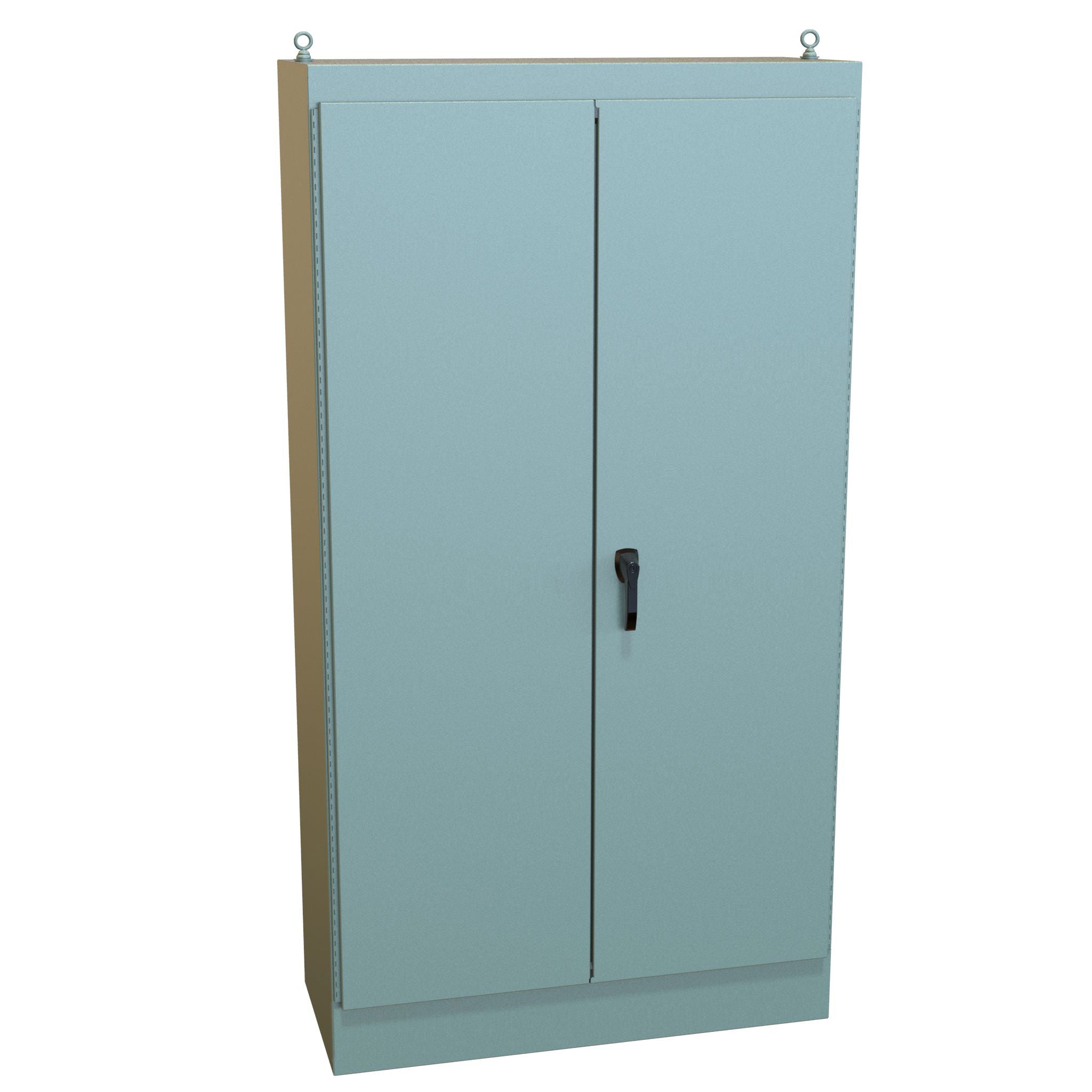

1418BW20 Hammond Type 12 Two Door Freestanding Enclosure, 90 x 48 x 20 in, Steel, Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1418BW20 is a Type 12 two door freestanding enclosure, 90 x 48 x 20 in (H x W x D), mild steel with a gray finish. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any cutouts or modifications, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1418BW20 specifications
| Catalog number | 1418BW20 |
| Manufacturer | Hammond Manufacturing |
| Series | Type 12 Mild Steel Two Door Freestanding Enclosure (1418 TD FS Series) |
| Hammond description | N12 Freestanding Encl, Dbl Door - 90 x 48 x 20 - Steel/Gray |
| Nominal size | 90 x 48 x 20 in H x W x D |
| Outside size | 90.06 x 48.06 x 20.06 in (2288 x 1221 x 510 mm) H x W x D |
| Doors | Two |
| Material and finish | Mild steel, gray finish |
| Type rating | NEMA Type 12 |
| Mounting | Freestanding |
| UL file | E65324 |
| CSA certificate | LR21001 |
| Shipping weight | 584 lb (264.90 kg) |
Specifications from the Hammond Manufacturing product page for 1418BW20. Confirm against the current drawing before you cut or mount.
Hammond specification sheet for the 1418 TD FS Series (PDF) and 1418BW20 drawing (PDF).
Cross reference
These crosses come from Hammond's own cross reference for the 1418BW20. They cover Hoffman, Eaton B-Line and Saginaw. Check the drawing before you swap a box in an existing layout.
| Brand | Competitor part | Hammond part |
|---|---|---|
| Hoffman | A904820FSD | 1418BW20 |
| Eaton B-Line | 904820-12FSD | 1418BW20 |
| Saginaw | SCE-904820FSD | 1418BW20 |
Replacing a Hoffman, Saginaw or Wiegmann enclosure? Send that part number and we will cross it to the matching Hammond catalog number. See the Hoffman to Hammond cross reference and the enclosure cross reference. Sealing drives or power supplies inside? Size the cooling with the enclosure heat load calculator. See all Hammond enclosures.
