1418J8 Hammond Type 12 Wallmount Enclosure with Panel, 24 x 24 x 8 in, Steel, Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

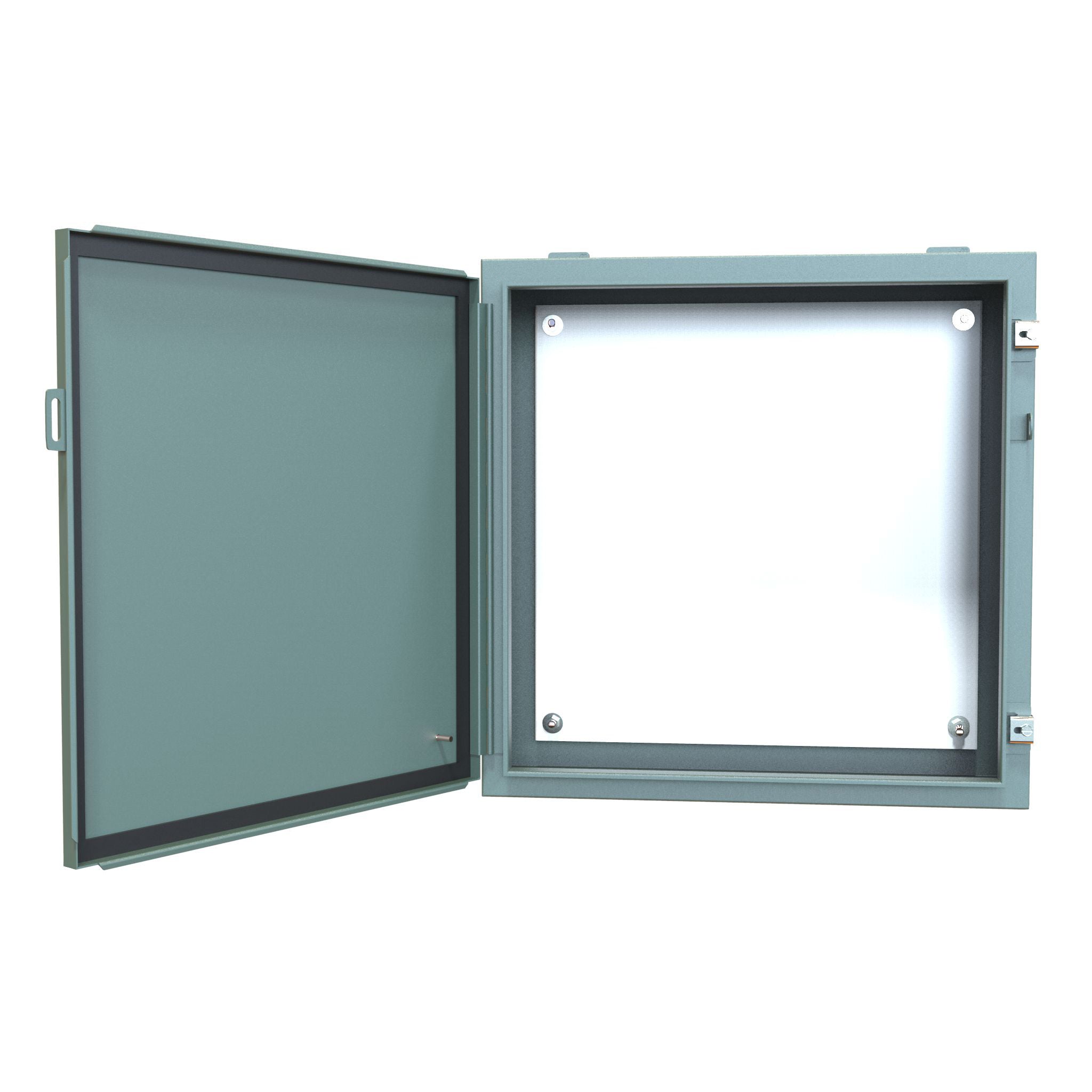

The Hammond Manufacturing 1418J8 is a Type 12 wallmount enclosure with a mounting panel, 24 x 24 x 8 in (H x W x D), mild steel with a gray finish. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any cutouts or modifications, and the quote comes back the same business day.
Stock status: Hammond lists 1418J8 as discontinued as a stocked part and names 1418J8LP as the replacement. 1418J8LP is the Type 4/12 version and ships less panel, so order the mounting panel with it. Send either number and we will quote the current part.
Request a QuoteBook 15 Minutes
1418J8 specifications
| Catalog number | 1418J8 |
| Manufacturer | Hammond Manufacturing |
| Series | Type 12 Mild Steel Wallmount Enclosure (1418 Series) |
| Hammond description | N12 Wallmount Encl w/panel - 24 x 24 x 8 - Steel/Gray |
| Size | 24 x 24 x 8 in H x W x D (610 x 610 x 203 mm) |
| Material and finish | Mild steel, gray finish |
| Type rating | NEMA Type 12 |
| Mounting | Wallmount |
| Panel | Included |
| UL file | E65324 |
| CSA certificate | LR21001 |
| Shipping weight | 65 lb (29.48 kg) |
Specifications from the Hammond Manufacturing product page for 1418J8. Confirm against the current drawing before you cut or mount.
Hammond specification sheet for the 1418 Series (PDF) and 1418J8 drawing (PDF).
Cross reference
Replacing a Hoffman, Saginaw or Wiegmann enclosure? Send that part number and we will cross it to the matching Hammond catalog number. See the Hoffman to Hammond cross reference and the enclosure cross reference. Sealing drives or power supplies inside? Size the cooling with the enclosure heat load calculator. See all Hammond enclosures.
