1418N4ALK8 Hammond Type 4X Wallmount Enclosure with Panel, 30 x 24 x 8 in, Aluminum
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

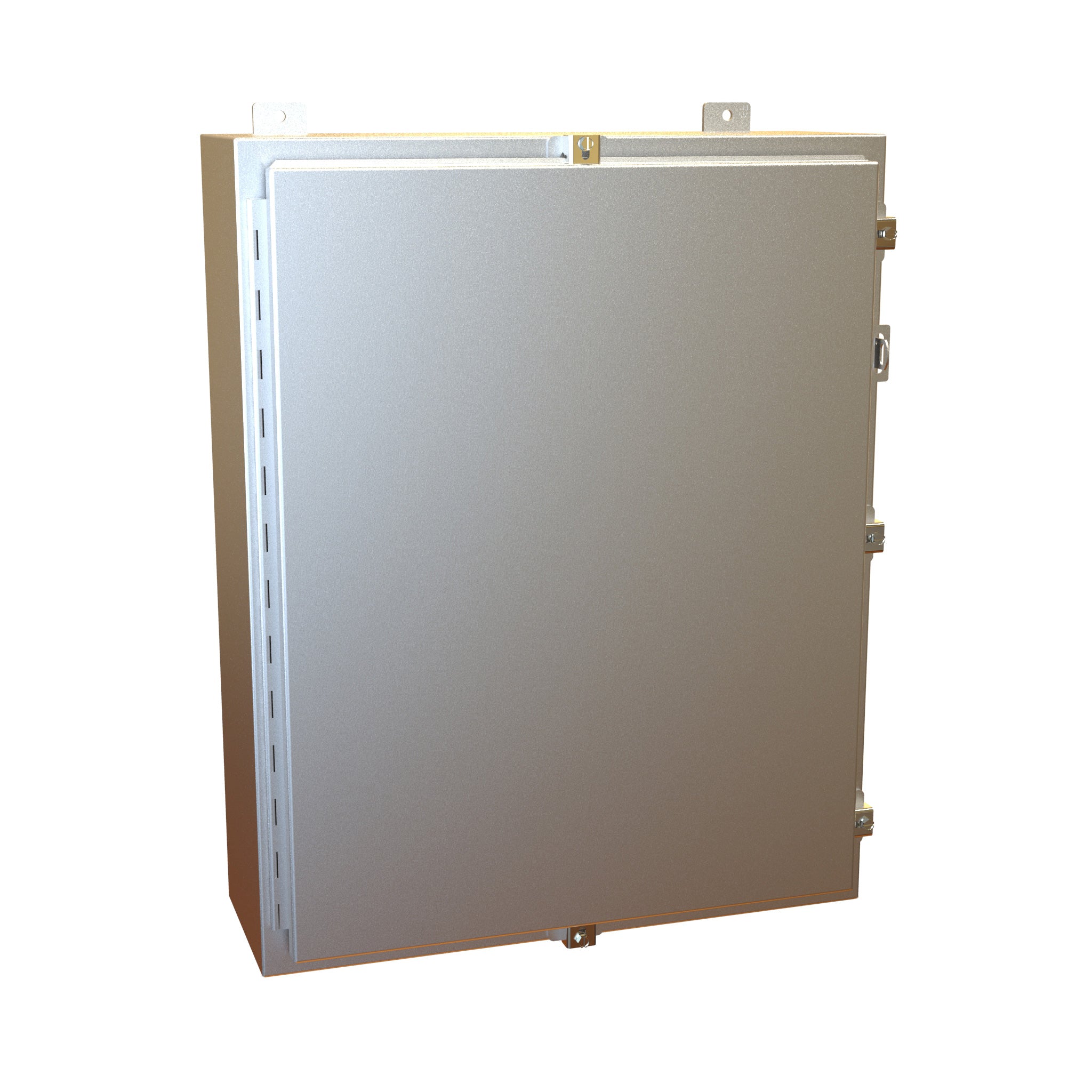

The Hammond Manufacturing 1418N4ALK8 is a Type 4X wallmount enclosure with a mounting panel, 30 x 24 x 8 in (H x W x D), aluminum. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any cutouts or modifications, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1418N4ALK8 specifications
| Catalog number | 1418N4ALK8 |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4X Aluminum Wallmount Enclosure (1418 N4 AL Series) |
| Hammond description | N4X Wallmount Encl w/panel - 30 x 24 x 8 - Alum |
| Dimensions | 30 x 24 x 8 in H x W x D (762 x 610 x 203 mm) |
| Material and finish | Aluminum |
| Type rating | NEMA Type 4X |
| Panel | Included |
| UL file | E65324 |
| CSA certificate | LR21001 |
| Weight | 44 lb (19.96 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1418N4ALK8. Confirm against the current drawing before you cut or mount.
Hammond specification sheet for the 1418 N4 AL Series (PDF) and 1418N4ALK8 drawing (PDF).
Cross reference
These crosses come from Hammond's own cross reference for the 1418N4ALK8. They cover Hoffman and Eaton B-Line. The Hammond box ships with its panel. The other boxes list the panel as a separate part, shown in the panel column. Check the drawing before you swap a box in an existing layout.
| Brand | Competitor part | Competitor panel | Hammond part |
|---|---|---|---|
| Hoffman | A30H2408ALLP | A30P24 | 1418N4ALK8 |
| Eaton B-Line | 30248-4XA | AW3024P | 1418N4ALK8 |
Replacing a Hoffman, Saginaw or Wiegmann wallmount enclosure? Send that part number and we will cross it to the matching Hammond catalog number. See the Hoffman to Hammond cross reference and the enclosure cross reference. Sealing drives or power supplies inside? Size the cooling with the enclosure heat load calculator. See all Hammond enclosures.
