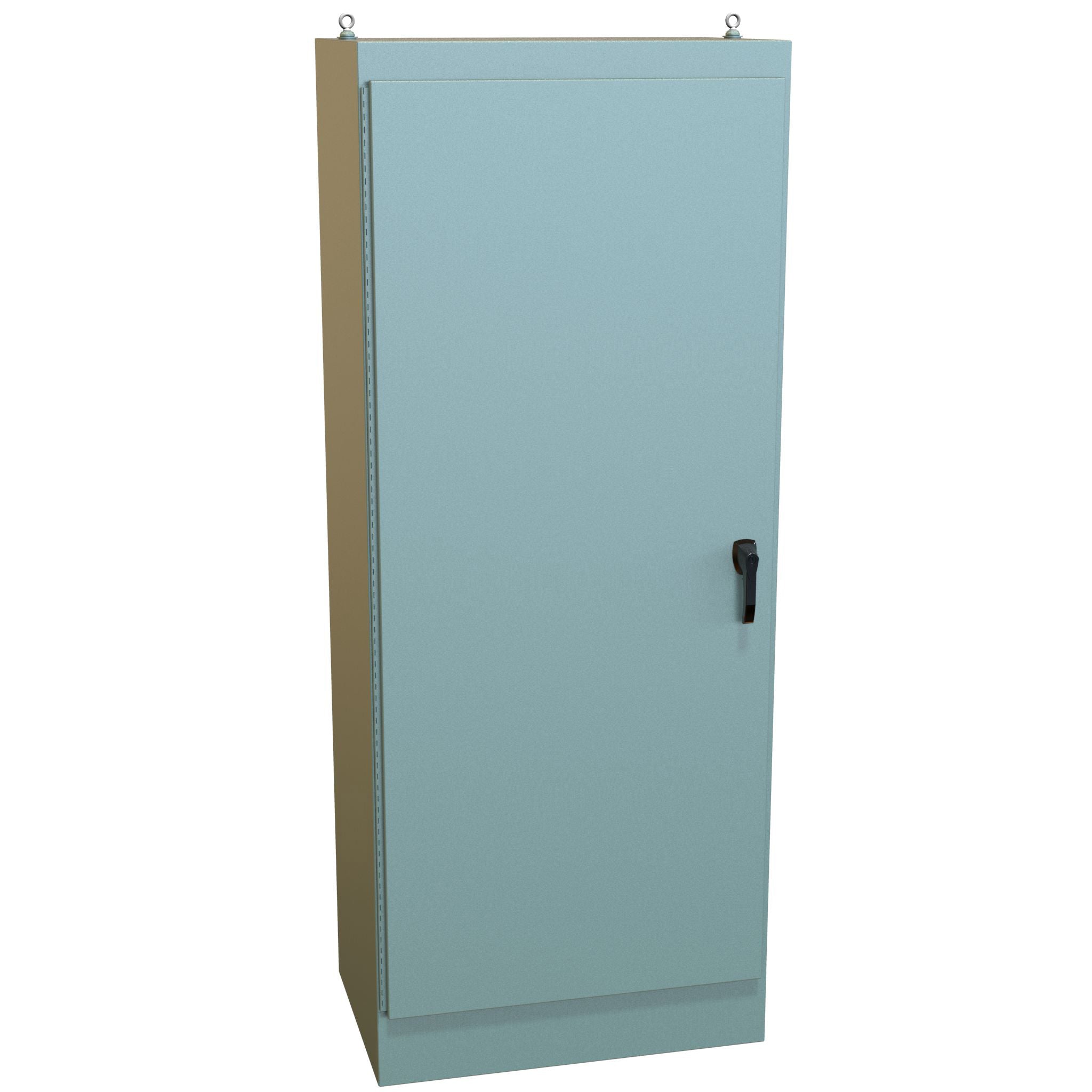

1418YY24 Hammond Type 12 Freestanding Enclosure, 90 x 36 x 24 in, Steel, Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1418YY24 is a Type 12 freestanding enclosure, 90 x 36 x 24 in (H x W x D), mild steel with a gray finish. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any cutouts or modifications, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1418YY24 specifications
| Catalog number | 1418YY24 |
| Manufacturer | Hammond Manufacturing |
| Series | Type 12 Mild Steel Freestanding Enclosure (1418 FS Series) |
| Hammond description | N12 Freestanding Encl - 90 x 36 x 24 - Steel/Gray |
| Nominal size | 90 x 36 x 24 in H x W x D |
| Outside size | 90.06 x 36.06 x 24.06 in (2288 x 916 x 611 mm) H x W x D |
| Material and finish | Mild steel, gray finish |
| Type rating | NEMA Type 12 |
| Mounting | Freestanding |
| UL file | E65324 |
| CSA certificate | LR21001 |
| Shipping weight | 452 lb (205.02 kg) |
Specifications from the Hammond Manufacturing product page for 1418YY24. Confirm against the current drawing before you cut or mount.
Hammond specification sheet for the 1418 FS Series (PDF) and 1418YY24 drawing (PDF).
Cross reference
These crosses come from Hammond's own cross reference for the 1418YY24. They cover Hoffman, Eaton B-Line and Saginaw. Check the drawing before you swap a box in an existing layout.
| Brand | Competitor part | Hammond part |
|---|---|---|
| Hoffman | A903624FS | 1418YY24 |
| Eaton B-Line | 903624-12FS | 1418YY24 |
| Saginaw | SCE-903624FS | 1418YY24 |
Replacing a Hoffman, Saginaw or Wiegmann enclosure? Send that part number and we will cross it to the matching Hammond catalog number. See the Hoffman to Hammond cross reference and the enclosure cross reference. Sealing drives or power supplies inside? Size the cooling with the enclosure heat load calculator. See all Hammond enclosures.
