1447SN4SSB8 Hammond Type 4X Disconnect Enclosure with Panel, 24 x 21.38 x 8 in, 304 Stainless
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

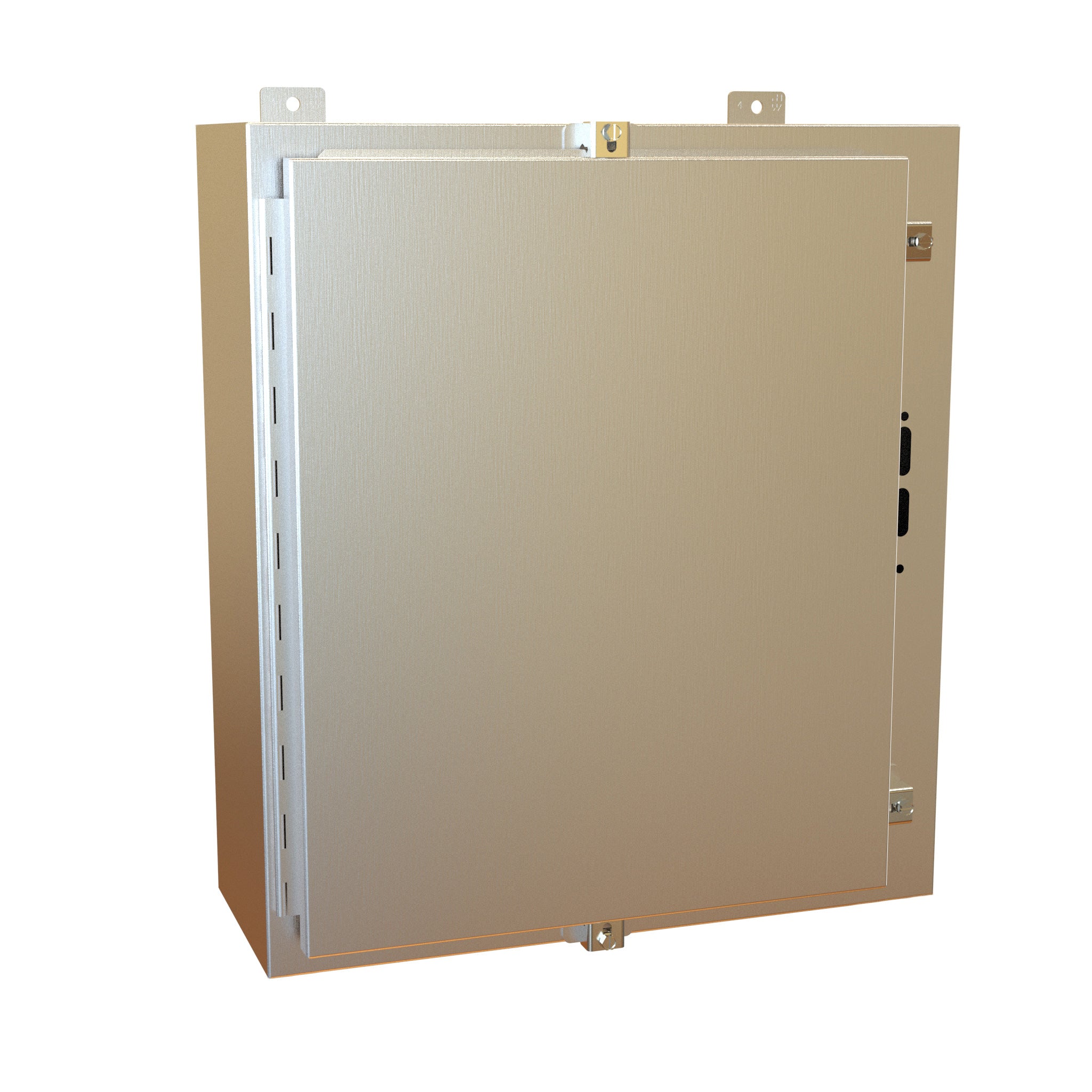

The Hammond Manufacturing 1447SN4SSB8 is a Type 4X wallmount disconnect enclosure with a mounting panel, 24 x 21.38 x 8 in (H x W x D), 304 stainless steel. The disconnect and operating mechanism are ordered separately. It takes flange mounted operators from ABB, Allen Bradley 1494V and 1494U, Cutler Hammer / C-H Westinghouse C361 and C371, GE Type STDA, Siemens I-T-E Max-Flex and Square D Class 9422. Applied Control is the Hammond manufacturers representative. Send the catalog number, the quantity and the disconnect you plan to use, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1447SN4SSB8 specifications
| Catalog number | 1447SN4SSB8 |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4X Stainless Steel Wallmount Disconnect Enclosure (1447S N4 SS Series) |
| Hammond description | N4X Disconnect Encl w/panel - 24 x 21.38 x 8 - 304 SS |
| Size | 24 x 21.38 x 8 in H x W x D (610 x 543 x 203 mm) |
| Material and finish | 304 stainless steel |
| Ratings (Hammond series sheet) | UL 508A Type 3R, 4, 4X. CSA Type 3R, 4, 4X. NEMA Type 3R, 4, 4X, 12, 13. IP66. |
| Door | Continuous hinge door with clamps, flange with multi-vendor cutout, lift-off stainless hinge pin |
| Panel | Included |
| Handle and mechanism | Not included. Disconnect and operating mechanism are ordered from the disconnect maker. |
| Fits flange mounted operators from | ABB, Allen Bradley 1494V and 1494U, Cutler Hammer / C-H Westinghouse C361 and C371, GE Type STDA, Siemens I-T-E Max-Flex and Square D Class 9422 |
| Weight | 60 lb (27.22 kg) |
Part data from the Hammond Manufacturing product page for 1447SN4SSB8. Ratings, door and operator fit from the Hammond 1447S N4 SS Series specification sheet. Confirm against the current drawing before you cut or mount.
Hammond specification sheet for the 1447S N4 SS Series (PDF) and 1447SN4SSB8 drawing (PDF).
Cross reference
Replacing a Hoffman, Saginaw or Wiegmann disconnect enclosure? Send that part number and we will cross it to the matching Hammond catalog number. See the Hoffman to Hammond cross reference and the enclosure cross reference. See every size and series side by side in the Hammond 1447S disconnect enclosure size grid. Size the cooling with the enclosure heat load calculator. See all Hammond enclosures.
