1455C802BK Hammond Extruded Aluminum Enclosure with Plastic End Panels, 3.15 x 2.13 x 0.91 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

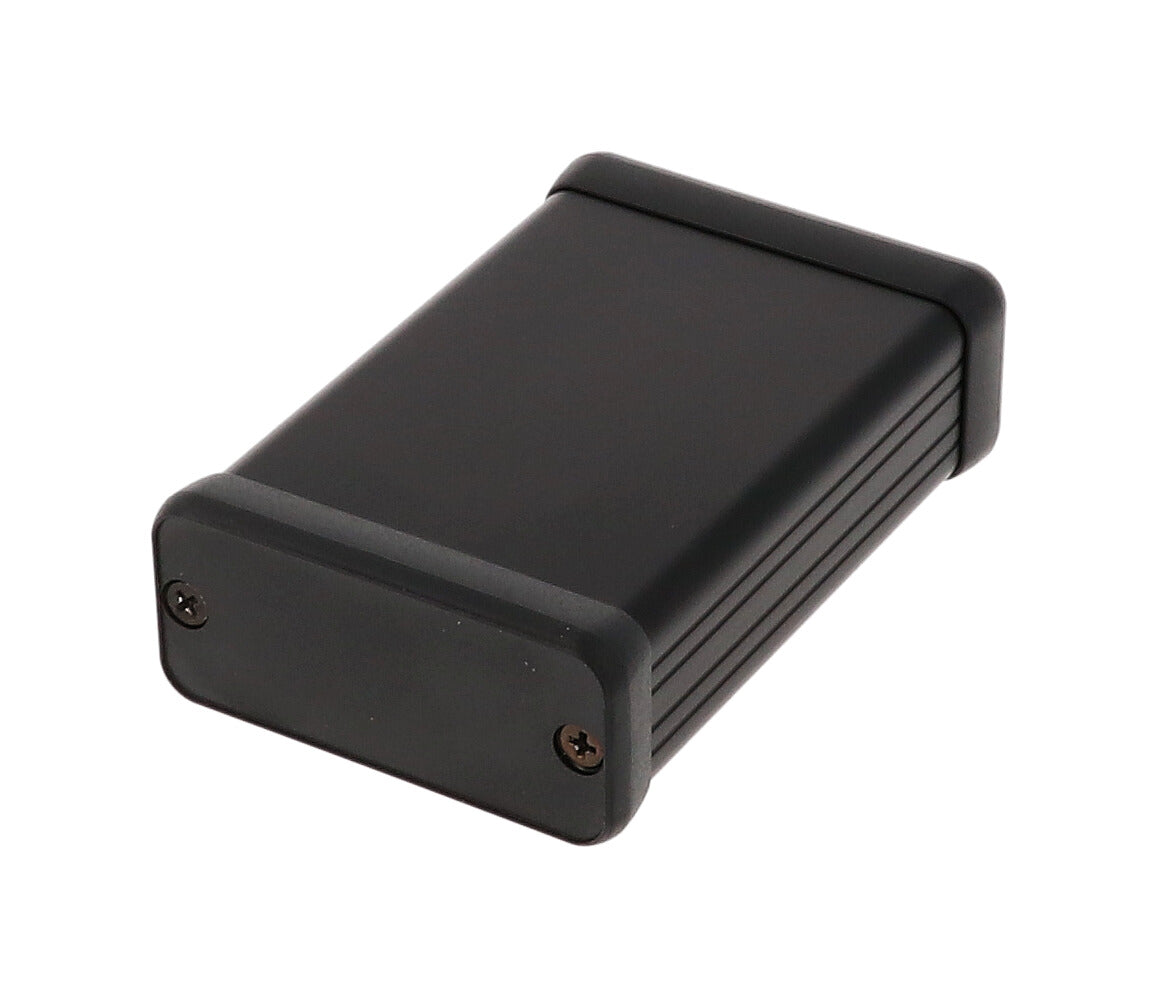

The Hammond Manufacturing 1455C802BK is an extruded aluminum PC board box with plastic end panels, from the 1455 series. It is 3.15 x 2.13 x 0.91 in L x W x H (80 x 54 x 23 mm) with a black finish and an IP54 rating. It takes a PC board up to 79 x 50 mm. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any holes, cutouts or printing, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1455C802BK specifications
| Catalog number | 1455C802BK |
| Manufacturer | Hammond Manufacturing |
| Series | Extruded Aluminum Enclosures (1455 Series) |
| Hammond description | black extruded aluminum enclosure w/ plastic end panels |
| Hammond short description | 80 X 54 X 23MM EXTRUDED ENCL |
| Type | PC board enclosure |
| End panels | Plastic |
| Outside size, L x W x H | 3.15 x 2.13 x 0.91 in (80 x 54 x 23 mm) |
| Material | Aluminum (extruded) |
| Color | Black |
| IP rating | IP54 |
| Max. PC board length | 79 mm |
| Max. PC board width | 50 mm |
| Shipping weight | 0.16 lb (0.07 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1455C802BK. Confirm against the current drawing before you drill or mount.
Hammond product page for 1455C802BK.
Same size in other finishes: 1455C802, 1455C802BU, 1455C802RD.
Holes, cutouts and printing
Send a drawing or a marked-up sketch of the end panels with the part number. We check what Hammond can machine or print on this part and quote the box finished, so it shows up ready to load.
More Hammond boxes at Hammond Manufacturing and enclosures. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
