1455C802BU Hammond Extruded Aluminum Enclosure with Plastic End Panels, 3.15 x 2.13 x 0.91 in, IP54, Blue
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

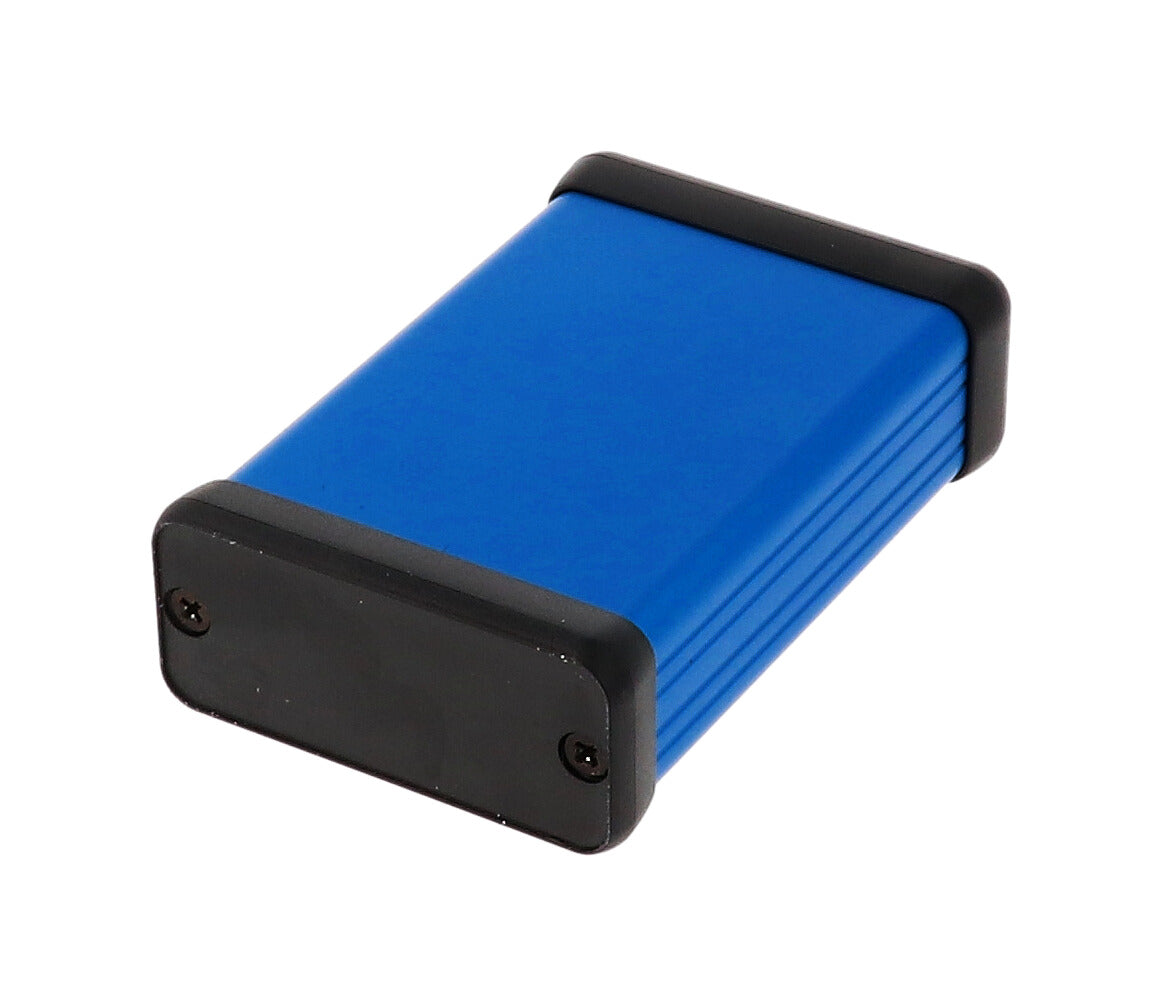

The Hammond Manufacturing 1455C802BU is an extruded aluminum PC board box with plastic end panels, from the 1455 series. It is 3.15 x 2.13 x 0.91 in L x W x H (80 x 54 x 23 mm) with a blue finish and an IP54 rating. It takes a PC board up to 79 x 50 mm. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any holes, cutouts or printing, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1455C802BU specifications
| Catalog number | 1455C802BU |
| Manufacturer | Hammond Manufacturing |
| Series | Extruded Aluminum Enclosures (1455 Series) |
| Hammond description | blue extruded aluminum enclosure w/ plastic end panels |
| Hammond short description | BLUE 80 X 54 X 23MM ALUM ENCL |
| Type | PC board enclosure |
| End panels | Plastic |
| Outside size, L x W x H | 3.15 x 2.13 x 0.91 in (80 x 54 x 23 mm) |
| Material | Aluminum (extruded) |
| Color | Blue |
| IP rating | IP54 |
| Max. PC board length | 79 mm |
| Max. PC board width | 50 mm |
| Shipping weight | 0.16 lb (0.07 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1455C802BU. Confirm against the current drawing before you drill or mount.
Hammond product page for 1455C802BU.
Same size in other finishes: 1455C802, 1455C802BK, 1455C802RD.
Holes, cutouts and printing
Send a drawing or a marked-up sketch of the end panels with the part number. We check what Hammond can machine or print on this part and quote the box finished, so it shows up ready to load.
More Hammond boxes at Hammond Manufacturing and enclosures. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
